Development of intelligent product design software sheet metal customization of financial and medical self-service machine Product content

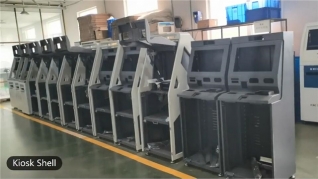

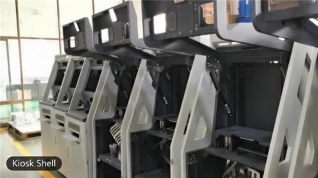

Self-Service Kiosks Often Combine Several Devices in One Sheet Metal Structure
A custom terminal enclosure may need to support a display, card reader, printer, scanner, control electronics, cables, brackets, and service panels within one compact structure.
The enclosure should follow the actual module layout and maintenance requirements of the customer's equipment.
DisplayScreen opening, bezel area, and mounting points can be prepared according to the selected display.
Card ReaderFront-panel openings and internal brackets can be matched to the actual reader layout.
PrinterPaper outlet, service access, and internal mounting should be considered together.
Scanner / CameraAdditional cutouts and mounting features can be integrated where required.

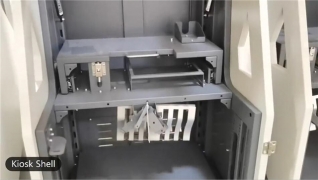

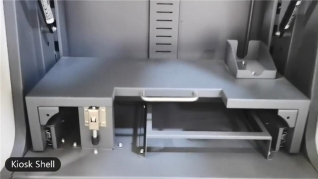

Control ElectronicsInternal plates, studs, brackets, and cable routes can support the customer's hardware.

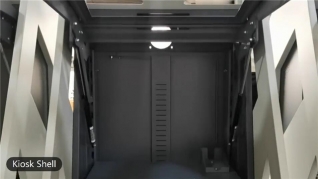

Access PanelsDoors or removable covers can be arranged for maintenance and component replacement.

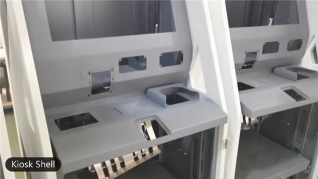

The Front Panel Should Follow the Device Layout
● Display and reader openings should match actual module dimensions
● Printer and scanner positions should consider user access
● Cosmetic surfaces should be identified before fabrication
● Internal brackets should not interfere with cables or maintenance access
● Locks, hinges, and handles should match the service-door layout
Typical Fabrication Route
Laser CuttingOpenings, panels, mounting holes, and flat profiles
CNC BendingMain body, doors, brackets, and internal structures
JoiningWelding, riveting, studs, or mechanical fastening where required
Surface FinishPowder coating or other specified treatment
Mechanical AssemblyPanels, doors, brackets, hinges, locks, and hardware according to the project scope
Developing a Custom Self-Service Terminal?
Send your enclosure drawing together with display, card reader, printer, scanner, internal layout, material, finish, hardware, and quantity requirements. Our team can review the sheet metal structure before quotation.
Customer drawings, CAD files, samples, and technical specifications are treated as confidential. NDA support is available for OEM projects.
