Reinforced Sheet Metal Enclosures for Harsh Industrial Environments
Product content

Industrial Enclosure Reinforcement

Strength should be added where loads enter and move through the enclosure.

Hongming Sheng manufactures drawing-based reinforced sheet metal enclosures. Mounting points, panels, doors, seams and internal equipment supports are reviewed according to the application.

Email: info@hms1688.com

Send Enclosure Drawings

Reinforcement Zones Examples Methods Quote Inputs Get Quote

← Swipe for more sections →

Four Areas to Check First

ZONE 01Mounting PointsWhere enclosure loads enter the supporting structure.

ZONE 02Panels & OpeningsDoors, vents and cutouts that may reduce stiffness.

ZONE 03Corners & SeamsConnections that distribute forces between faces.

ZONE 04Internal SupportsRails and brackets carrying installed equipment.

Reinforced Enclosure Examples

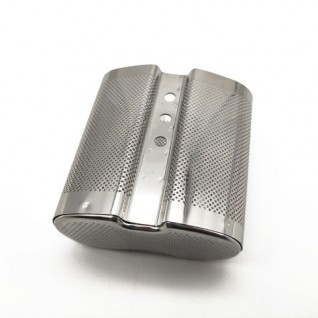

Outdoor sheet metal enclosure with sealing and ventilation details

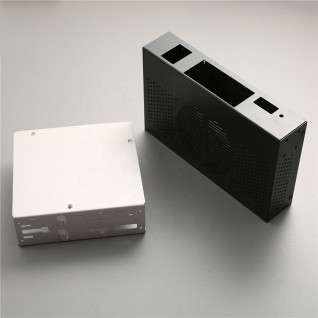

Folded enclosure with reinforced corner flanges

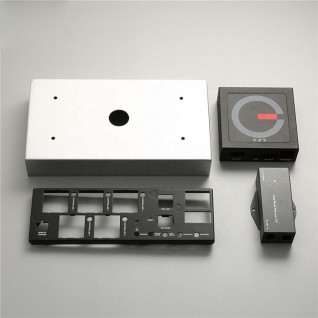

Industrial control enclosure with support features

← Swipe to view more images →

Reinforcement Methods by Function

Return Flanges & Hemmed EdgesIncrease local stiffness and protect exposed panel edges.

Formed Ribs & BeadsStiffen selected areas without increasing thickness across the entire panel.

Braces & GussetsSupport corners, mounting points and concentrated internal loads.

Internal Rails & SubframesCreate controlled mounting interfaces for heavy or serviceable equipment.

Material & ThicknessSteel, stainless steel or aluminum should be selected according to load, weight and environment.

Protection ratings apply to the complete assembled enclosure.

Thicker panels, gaskets or coatings alone do not establish an IP, vibration or impact rating. Doors, fasteners, cable entries, vents and mounting details should be evaluated against the specified project requirement.

Information for a Faster Review

2D drawings and 3D assembly model

Enclosure dimensions and installed weight

Mounting points and installation orientation

Internal component positions and loads

Shock, vibration and transport requirements

Target IP, temperature and corrosion conditions

Material, finish, quantity and destination

Need a Reinforced Industrial Enclosure?

Send your drawings, internal loads, mounting method, environment, material, finish and quantity for manufacturing review.

Email: info@hms1688.com

Request Enclosure Quote
