Hongming Sheng manufactures custom welded support frames and equipment support structures according to customer drawings and CAD files.

We support tube, plate and welded frame fabrication for machinery, automation equipment, cabinets and industrial assemblies.

Support Frame Applications

• Machine support frames
• Automation equipment bases
• Robot support structures
• Cabinet internal frames
• Electrical equipment supports
• Custom equipment chassis

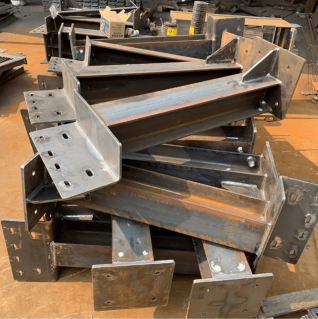

More Welded Frame Examples

Fabrication Capabilities

Quality & RFQ Requirements

• Overall dimensions
• Frame squareness and alignment
• Mounting hole positions
• Weld location and appearance
• Assembly interface dimensions
• Surface finish inspection

For quotation, please provide your 2D / 3D drawing, frame size, material, quantity, welding and finish requirements.

Confidential OEM Manufacturing

Customer drawings, CAD files and technical specifications are treated as confidential. NDA support is available for custom support frame projects.
