Custom Aluminum Thermal Components Aluminum heat sinks manufactured for industrial electronics, power devices and high-density equipment.
Hongming Sheng supports extrusion, cutting, CNC machining, drilling, tapping, anodizing and inspection for custom thermal-management components.
Send drawings by email: info@hms1688.com

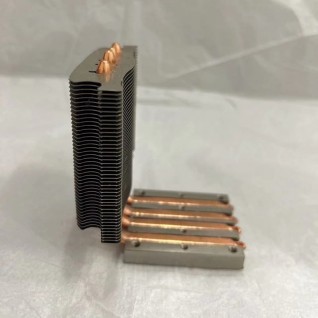

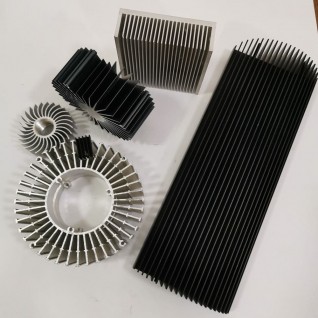

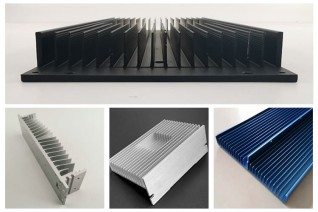

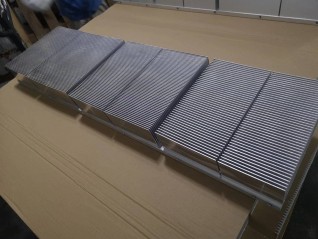

Heat Sink Manufacturing Examples
Swipe horizontally to view representative aluminum heat sink and cooling-component examples.
← Swipe left or right to view more →
Heat Sink Capabilities
Aluminum ExtrusionProfiles and fin structures designed around thermal and mechanical needs.
CNC MachiningPrecision mounting surfaces, holes, threads and component interfaces.
Cutting & DrillingLength cutting, hole patterns, slots and secondary features.
Surface FinishingBlack anodizing, natural anodizing and other specified treatments.
Assembly SupportHardware installation and mechanical assembly where required.
InspectionDimensional and appearance checks based on the approved drawing.
Materials and Finishing Options
6063 AluminumCommonly used for extruded heat sink profiles and fin structures.
6061 AluminumSuitable for machined brackets, plates and stronger structural features.
Black AnodizingAppearance, surface protection and identification for suitable parts.
Natural AnodizingLight metallic appearance with specified surface protection.
What Affects Cooling Component Design?
- Heat load and operating temperature range
- Available space, fin height and airflow direction
- Mounting points and contact-surface flatness
- Fan, thermal pad, heat pipe or interface requirements
- Weight, surface treatment and appearance requirements
From Design to Finished Heat Sink
1. Review Thermal RequirementsConfirm heat source, contact area, airflow, space and mounting conditions.
2. Select the Manufacturing RouteEvaluate extrusion, machining, cutting and secondary operations.
3. Produce a SampleCheck dimensions, interfaces, finish and installation fit.
4. Inspect the ComponentVerify critical dimensions, surfaces, holes and appearance.
5. Repeat ProductionApply approved requirements to future batches.
Typical Applications
Industrial ElectronicsControllers, drives, power supplies and control units.
AI & Data EquipmentCooling components for high-density electronic systems.
Energy SystemsChargers, battery equipment and power-conversion devices.
CommunicationTelecom, network and signal-processing hardware.
AutomationRobotics, motion-control and industrial automation equipment.
LED and LightingThermal components for suitable lighting assemblies.
Information Needed for Quotation
- 2D drawing or 3D CAD model
- Heat load, interface temperature or cooling target, if available
- Material, profile dimensions and fin requirements
- Mounting holes, threads and contact-surface requirements
- Surface finish, color and appearance requirements
- Prototype and expected production quantities
Please note: the mobile inquiry page currently collects contact and project information but does not support direct file uploads. Submit the form first, then email drawings or thermal requirements to info@hms1688.com.
Confidential OEM Support
Customer drawings, CAD files and thermal-management information are treated as confidential project information. NDA support is available for OEM projects.
Discuss Your Heat Sink Project
Submit your contact information and basic requirements, then email the latest drawing for manufacturing review.
