Custom L/U/Z Shaped Metal Angle Brackets for Industrial Applications

Custom L, U and Z Metal Brackets Made to Your Drawings

Hongming Sheng manufactures custom metal angle brackets for equipment mounting, cabinet structures, automation frames and enclosure assemblies. We produce L-shaped, U-shaped and Z-shaped parts according to your dimensions, mounting requirements and specified material.

From prototype samples to repeat production, our team reviews cutting, bending, tooling and finishing requirements to develop a suitable fabrication route.

Email: info@hms1688.com

Send Your Bracket Drawing

Custom Bracket Manufacturing Examples

View examples of our fabricated metal brackets. Your order can be customized for shape, hole layout, bend angle and surface finish.

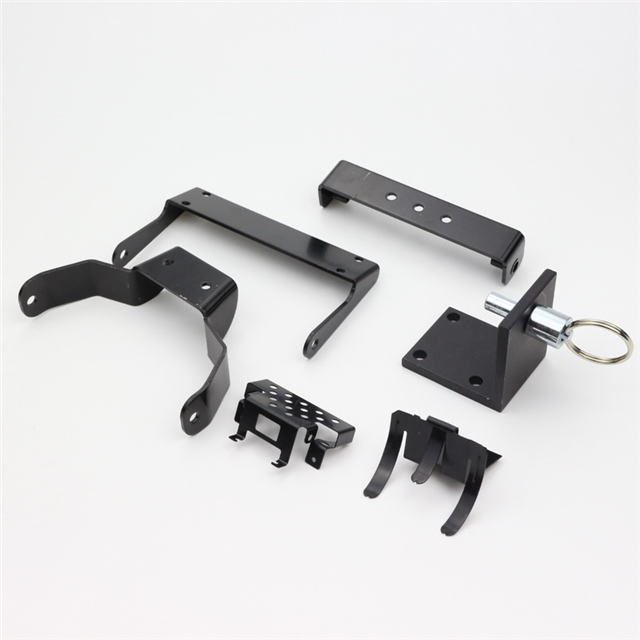

Custom metal bracket fabrication sample 1

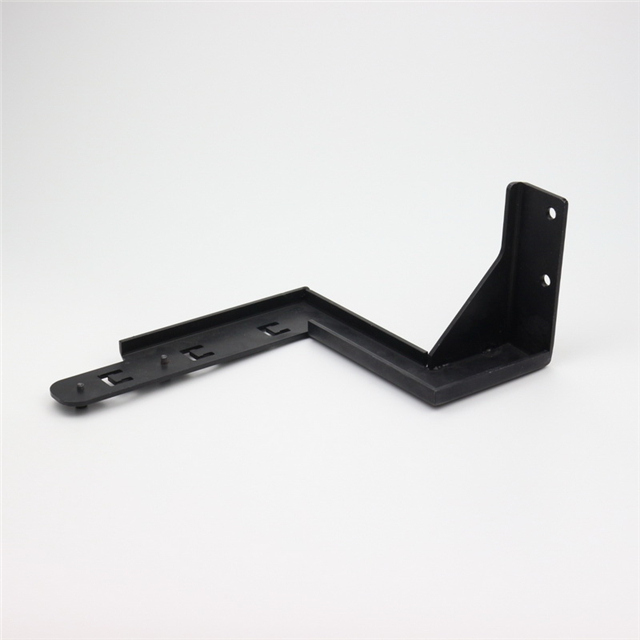

Custom metal bracket fabrication sample 2

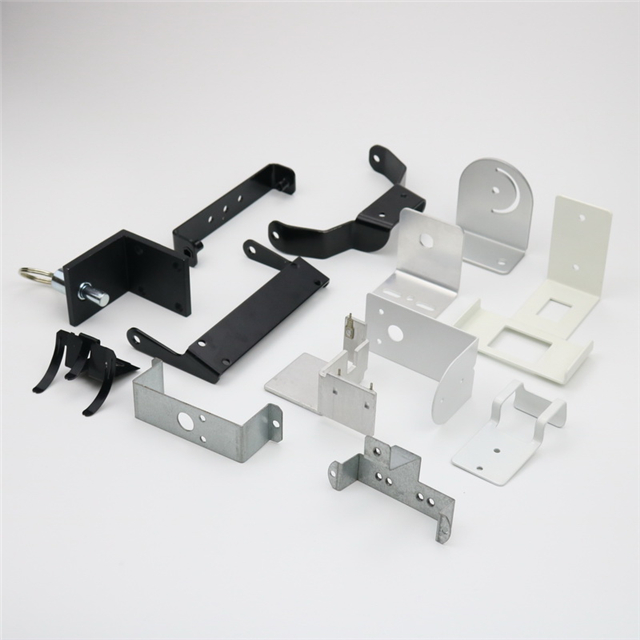

Custom metal bracket fabrication sample 3

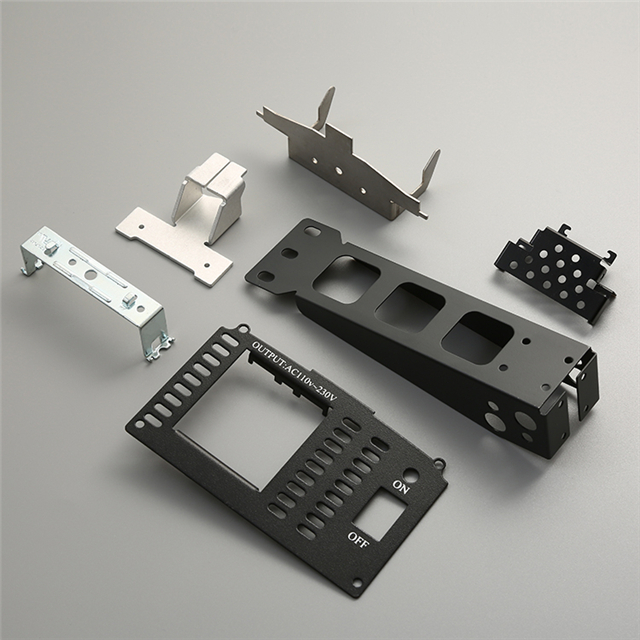

Custom metal bracket fabrication sample 4

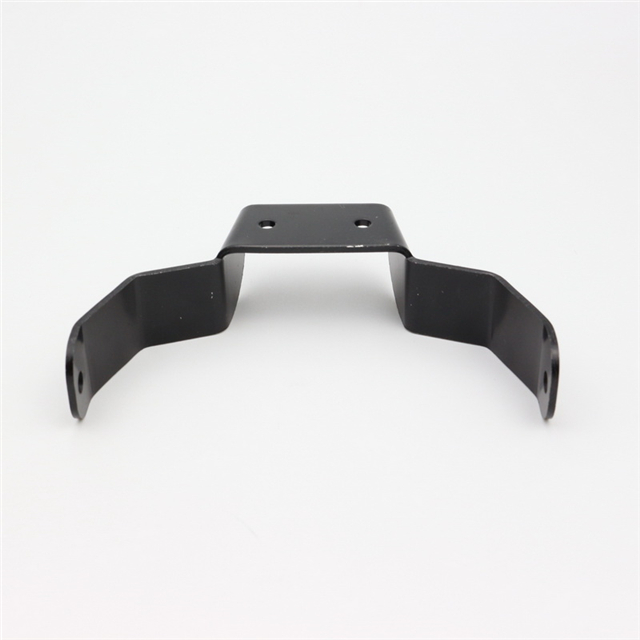

Custom metal bracket fabrication sample 5

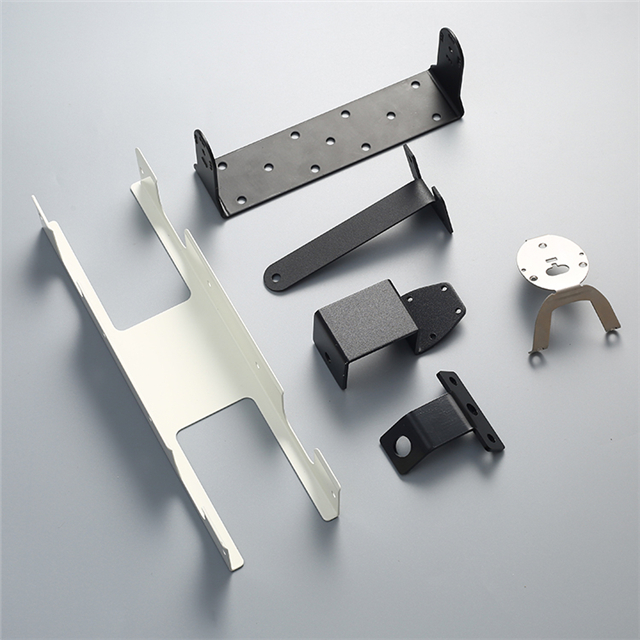

Custom metal bracket fabrication sample 6

Choose the Shape Around Your Assembly

L-Shaped Angle Brackets

Two flanges provide a mounting connection between adjacent surfaces. Specify flange lengths, hole positions and the required angle for cabinet corners, support plates or equipment mounts.

U-Shaped Mounting Brackets

A channel-shaped profile can support or locate a component between two side flanges. Inside width, flange parallelism and clearance around the mating part are important drawing details.

Z-Shaped Offset Brackets

Offset flanges connect mounting surfaces on different planes. Define the offset height, bend direction and mounting-hole relationship to suit panels, rails or enclosure supports.

Materials, Thickness and Finishing Options

• Steel and stainless steel: Carbon steel and stainless steel options according to strength, corrosion exposure and finishing requirements.

• Aluminum: 5052 and 6061 options. Alloy, temper and bend radius are reviewed together to assess forming suitability.

• Thickness: 1–10 mm, subject to material, bend length, part geometry and tooling review.

• Angles: 45°, 90°, 135° or custom angles. Show the intended angle and its tolerance on the drawing.

• Finishes: Brushing, powder coating, aluminum anodizing or steel zinc plating, selected for the specified material and application.

Watch Our Metal Bracket Production

Drawing Details That Help Prevent Assembly Problems

• Identify the mounting faces and dimensions that control fit.

• Specify hole diameters, slots, threads and their positions relative to bends.

• Include inside bend radii, angle tolerances and any critical flange alignment.

• Mark surfaces that require cosmetic protection or coating masking.

• Share loading conditions where relevant. Load capacity requires assessment for the actual bracket and installation.

From Drawing Review to Finished Brackets

01. Engineering Review
Confirm dimensions, material, quantity, forming access and finishing requirements before production.

02. Cutting and Forming
Select laser cutting, punching or stamping and suitable bending operations for the part and order volume.

03. Secondary Processing
Include deburring, tapping and the agreed surface treatment where required.

04. Inspection and Packing
Check specified dimensions, hole locations, bend angles and appearance, then protect finished parts for shipment.

Typical Industrial Applications

• Electrical cabinet frames and power equipment mounting

• Automation equipment and sheet metal support structures

• Electronic enclosure brackets and internal mounting plates

• Laboratory equipment, aluminum rails and guide-system mounts

Only Have a Sketch or Sample?

Send photos or a sketch showing overall dimensions, thickness, hole positions and how the bracket attaches to your equipment. Our team can help clarify fabrication requirements and prepare drawing details for your approval.

Request a Custom Metal Bracket Quote

Send your drawing or CAD file with material grade, thickness, quantity, finish and target delivery date. Highlight critical dimensions and include mating-part details if fit is important.

Email: info@hms1688.com

Request Your Bracket Quote
