Customized sheet metal prototype manufacturing Chinese manufacturer: A Basic Knowledge Guide

Sheet metal fabrication is a versatile manufacturing process with an extensive list of techniques and usable metals. Getting familiar with the technology, how it works, and its applications will help you decide if it is the best option for your project. here's a comprehensive breakdown of this metal fabrication approach and its applications throughout numerous industries.


Overview of Sheet Metal Fabrication

Sheet metal fabrication is essential for various manufacturing processes, ranging from the manufacturing of toys to large-scale airplane parts. Notwithstanding its popularity, it is important to know how this manufacturing process works. Right here’s a detailed evaluate of sheet metal fabrication.


What is Sheet Metal Fabrication?

Sheet Metal Fabrication refers to the turning of flat metal sheets into metal products and structures. Typically, sheet metal processing methods involve transforming different types of sheet metals into parts and components. Therefore, it is helpful to think of this metal forming process not as a single manufacturing process but as a collection of forming techniques.



various Sheet Metal Fabrication techniques

These techniques often work in tandem with one another to produce the required part. The basic sheet metal fabrication techniques include cutting, bending, punching, stamping, welding, and finishing. We will dive into the details of these techniques shortly.

Sheet metal manufacturing is suitable for a range of metal materials. At Hongmingsheng, for instance, we produce sheet metal components made from Aluminum, Steel, Stainless Steel, Copper, and Brass. The manufacturing process is so common that you are unlikely to go about your day without encountering a sheet metal fabricated product. Whether it’s a home appliance or smaller parts like brackets or enclosures, you’ll find these products everywhere.





A Guide to Sheet Metal Design Process

Many people tend not to understand the basic steps involved in the sheet metal manufacturing process. The absence of fundamental knowledge can make it difficult to have realistic requirements and expectations for a project. The sheet metal processing methods often involve a multi-step process, requiring several skilled experts and tools for successful job completion.

From start to end, the metal fabrication design process involves:

The Idea

Every rapid prototyping process begins with an idea, and sheet metal design is no exception. It begins with basic concepts of what you want as a designer. You can put these ideas down roughly to provide realistic requirements for your project. It may also involve the designing of a 3D model of the desired sheet metal component. The version often includes requirements for wall thickness, bend radii, hole orientation, bend allowance, and greater.


Creating Engineering Drawings

After the completion of a 3D model, there is a need to create drawings for manufacturing. Before any work can begin, engineers need to develop blueprints. These blueprints will determine the specifications of the sheet metal needed to make initial drawings.


The drawings are what will be sent to the machine shop. The drawings often include all manufacturing information such as material selection, surface finishing, and more.

Manufacturability Analysis

Along with other related calculations, the drawings will be rechecked to ensure they follow requirements and specifications. Following a DfM strategy helps to focus on simplifying the designs and possible reduction of part counts. Such analysis suggests standardizing parts for various applications.

Furthermore, engineers will get insights into developing designs that can be easily manufactured. Once the manufacturability analysis is complete, there will be a final shop drawing with in-depth calculations of stress/strain levels and load limitations. The information available therein will determine the sheet metal fabrication process.

Prototype Development

Once there is a sheet metal design model, engineers carry out several processes to maintain the component’s geometry. These methods include cutting, bending, punching, stamping, and welding. Surface finishes also help to improve the aesthetics of the created prototype. It is important to carry out these steps one after the other. Rushing through the process or skipping one step may compromise the quality and integrity of the final product.

Prototype Testing

After developing the prototype, clients then evaluate the prototype to ensure that it meets their requirements. The testing may also involve using such components in real-life conditions. Also, evaluation can be done with users giving feedback on the products.

Full-Scale Production

A prototype that passes testing and meets the specified specification will go into full element production.




Types of Metal Fabrication Processes

To understand the formation of different parts using sheet metal fabrication, it is imperative to know the different types of techniques used. These sheet metal processing methods help to transform flat sheets of metal into three-dimensional, functional components. Below are the most common sheet metal processing techniques.

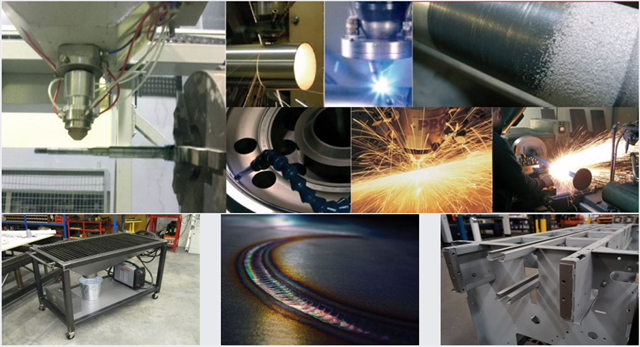

Cutting

1. Laser Cutting Service

CAD/CAM and engineering capabilities, and machines equipped with automation. We can meet tolerances to ±0.15mm.



2. Water-Jet Cutting Service

Water-jet cutter is able to cut material without interfering with the material's inherent structure as there is no 'heat affected zone' or HAZ, this allows metals to be cut without harming or changing their intrinsic proerties.


3. Plasma Cutting Service


4. Flame Cutting Service


Contact us or email to our sales team directly for your project info@hms1688.com





Sheet Metal Stamping Process


There are basically only three components to sheet metal stamping—the sheet metal, die, and press machine—but any single part can require multiple steps to arrive at its final form. The following guide explains a few common processes that might occur during metal stamping.

  1. Forming: Forming describes the technique of reworking the flat metal into another form by using making use of force. it's miles achieved in considered one of numerous methods, relying at the design specifications for the element. With a sequence of operations, the steel may be altered from a exceedingly easy form right into a complicated one.
  2. Blanking: Blanking is the most simple technique and initiates when the sheet or blank is fed into the press wherein the die cuts out the preferred shape. The ensuing piece is known as a clean. The blank may be the preferred element, also called a fully finished blank, or it is able to hold to the subsequent step of forming.
  3. Drawing: Drawing is a greater complex operation and is how vessels or deep depressions are fashioned. anxiety is used to carefully draw the material into a hollow space to exchange its form. though the material may stretch whilst it’s drawn, technicians try to keep away from stretching as a whole lot as feasible to keep the fabric intact. Sinks, cooking device, and oil pans for motors are generally made with drawing.
  4. Piercing: Piercing is nearly the other of blanking, but as opposed to saving the blanks, technicians use the cloth around the outdoor of the punched location. as an example, consider reducing biscuits from a rolled-out circle of dough. during blanking, the biscuits are stored; during piercing, on the other hand, the biscuits are discarded, and the hole-riddled remains are the desired final results.
Materials

Though virtually any metal, including gold, can be stamped, sheet metal is by far the most common. The type of metal used depends on the type of part that’s needed and its desired properties, such as corrosion- and heat-resistance.

Sheet metal stamping can produce parts from the following materials:

  1. Stainless steel
  2. Low- and high-carbon steel
  3. Aluminum
  4. Titanium
  5. Brass
  6. Bronze
  7. Copper
  8. Inconel
  9. Nickel alloys
Applications of Sheet Metal Stamping
In the stamping process, sheet metal is transformed into complex parts using highly specialized computer-aided drafting and manufacturing programs. Sheet metal stamping produces superior, resilient, heavy-duty parts quickly and efficiently. The results are so precise, they’re typically more reliable and consistent than manual machining.

The following industries use components that are created via sheet metal stamping:
  1. Automotive
  2. Renewable energy
  3. Medical
  4. Industrial
  5. Aerospace
  6. Hardware
  7. Home improvement
This list is by no means exhaustive. There is a considerable demand for sheet metal stamping, and the range of industries that depend on it is vast.




Metal Bending

To ensure a hitch-free bend and to avoid deformation, the following 10 tips are vital when designing.

1. Part thickness


Parts must have a uniform wall thickness throughout. Xometry Europe is capable of manufacturing bent sheet metal parts up to 6.35mm in thickness, but this tolerance mainly depends on the geometry

2. Hole and slot clearance

The distance of holes from the bend should be at least 2.5x the material thickness. Slots require more clearance. Slots should be placed at a distance of at least 4x the material thickness from the bend edges. This is because holes and slots are likely to deform when placed near a bend. Also, to avoid a bulging effect, place these features at a distance of at least 2x the material thickness from part edges.

3. Bend radius

The radius of bends must be a minimum of 1x the material thickness to prevent parts from fracturing or distorting. Also, the Bend radius should be kept consistent to minimize cost.

All bends in the same plane should be designed in one direction to prevent part reorientation. This saves both money and time.

Large, thick parts should not have small bends due to the high tendency to become inaccurate. As a rule of thumb, the inside bend radius should at least equal to the material thickness.

4. Curls


The outside radius of curls must be at least twice the material thickness.

In addition, the distance of holes from curls should be at least equal to the curl radius plus the material thickness. Other bends should be placed away from the curl at a distance of at least 6x the material thickness plus the curl radius.

5. Clearance for countersink

Countersinks on sheet metal parts are usually produced with hand tools. They must not be deeper than 0.6x the material thickness. This means that the maximum depth of a countersink in a 10 mm thick material should be 6 mm.

Furthermore, countersinks must have a minimum distance of 3x the material thickness from a bend, 4x from an edge, and 8x from each other.

6. Hems


Hems are folds created at the edge of parts to create a safe, rounded edge. There are three hem designs with different design rules.

For open hems, the minimum inside diameter should be at least equal to the material thickness, as larger diameters will cause loss of circularity. To ensure a perfect bend, the return length should be 4x the material thickness.

Teardrop hems should also have a minimum inside diameter that is equal to the material thickness. The opening should be a minimum of ¼x the material thickness, while the run length should be at least 4x the material thickness following the radius.

7. Chamfered sides

Chamfers on flanges must leave enough room for bends to avoid deformed parts.

8. Bends next to each other

Successive bends should be avoided except when absolutely necessary. A common problem for successive bends is the difficulty to fit the already bent parts on the die. However, when unavoidable, the intermediate part should be longer than the flanges.

9. Clearance for notches and tabs

The notch to bend distance should be at least 3x the material thickness plus the radius of the bend. Tabs, on the other hand, must be 1 mm or the material thickness away from each other, whichever value is greatest.

10. Relief cuts


Relief cuts are essential in avoiding bulging and tearing at bends. The width of the relief cuts should at least be equal to the material thickness, and the length should be longer than the radius of the bend.

Calculating Required Bending Force

Different factors are involved in creating the right bend in a workpiece. These include:

  • Bending strength of the material
  • Degree of bending
  • Thickness of the workpiece
  • Bend angle
  • Internal radius
  • Vee die opening
  • Minimum internal edge
The chart below can be used to calculate the bending force required to V bend mild steel S235 of different thicknesses, in different shapes, at an angle of 90°. Mild steel S235 has a bending strength of 42 kg/mm². The variable parameters are as follows.
  • S (mm) – Thickness of the workpiece
  • V (mm) – Vee die opening
  • B (mm) – Minimum internal edge
  • Ri (mm) – Internal radius

Conclusion
At Hongmingsheng, we offer high-precision, fast, and quality sheet metal bending and fabrication services for the creation of parts out of sheet metal such as aluminium, steel, copper alloys, and many others. Using automated bending techniques, we guarantee high precision and quality of ready parts.

We also carry out post-processing upon your request. To get an instant quote, upload your models on our instant quoting platform.




Welding


We empoys experienced welders, certified welders and robotic welders. This combination of expertise and accruacy ensure us that we can consistently provide you with world-class qualified welded parts. From simple spot-welds to complex assemblies, we can produce quality weldments in aluminum, carbon steel, stainless steel, and brass.

We welcome all welding metal fabrication orders, from smal, single part orders to large assemblies and multiple run parts. Whether it is just few pieces or it is a full container, we take the responsibility.

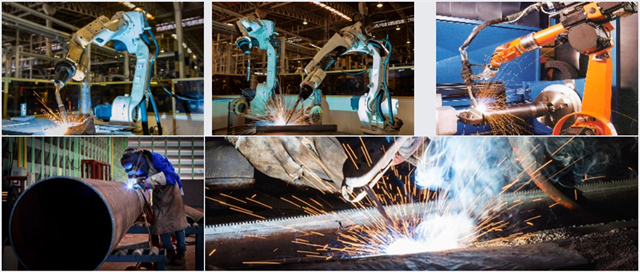

Our welding services include 5 robotic welders along with mutiple welding stations, and 5 multiple axis positioners as well as on-site experienced welding inspector.

We invest in our customers by investing in our equipment and craftsmen. Our capabilities and main equipment include:

1. Robotic Welder
Ø5 sets CNC robotic welders
ØMultiple axis positioners
ØTouch-sensing & seam-tracking
ØAluminum, carbon steel, and stainless steel capable


Contact us or email to our sales team directly for your project info@hms1688.com

2. Mig Welding (GMAW & FCAW)

3. Tig Welding (GTAW)

4. Stick Welding (SMAW)

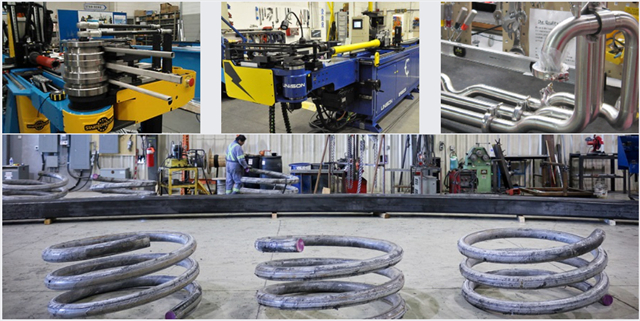

5. Pipe Bending


6. Secondary Services

1. Heat treatment to adjust metal physical and chemical properties;

2. Surface treatment: Painting, Powder coating, Zinc plating, Nick plating, Anodizing, Galvanizing, Polishing, etc...

3. Assembly;

4. Customized packaging, oil protection as per needed.
