Custom Corner Brackets for Metal Frame Reinforcement

FRAME JOINTS / CUSTOM OEM BRACKETS

Custom Corner Brackets Matched to Your Metal Frame

Hongming Sheng manufactures custom metal corner brackets for equipment frames, electrical cabinets, control housings and automation assemblies. We fabricate parts according to your drawings, mounting layout and specified material.

Corner reinforcement brackets can connect adjacent frame members or support right-angle joints. Flange dimensions, hole patterns and contact surfaces are customized around the actual frame and attachment method.

Email: info@hms1688.com

Request a Corner Bracket Quote

Corner Bracket Manufacturing Examples

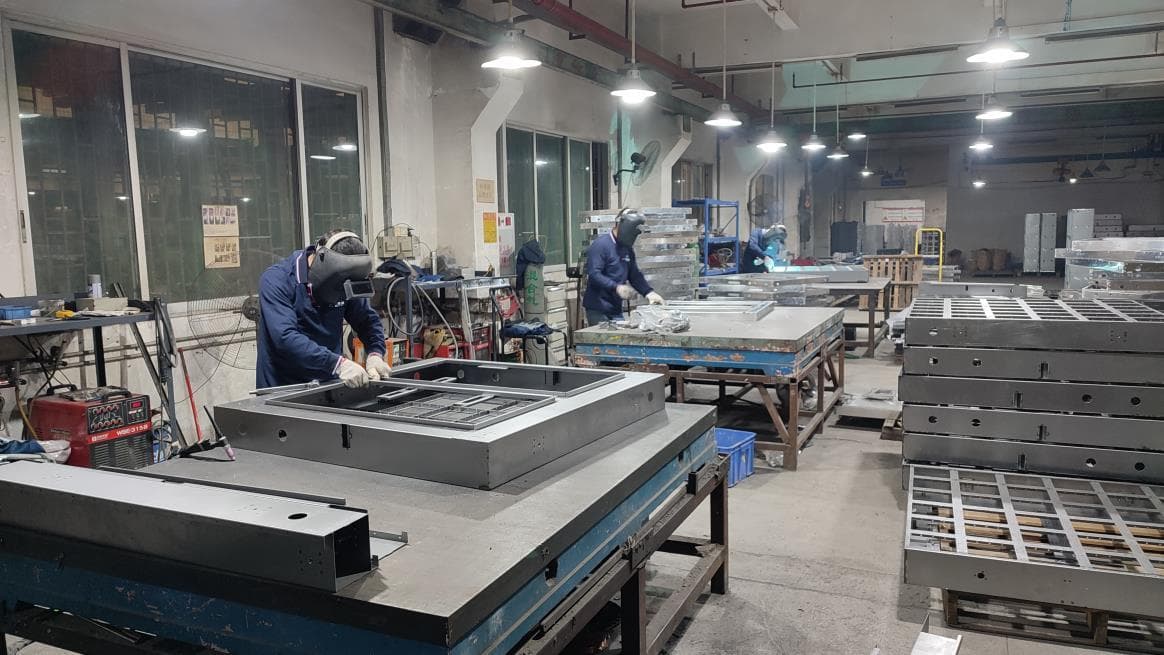

Examples from our factory. Your bracket geometry, mounting features and finish can be specified for the intended assembly.

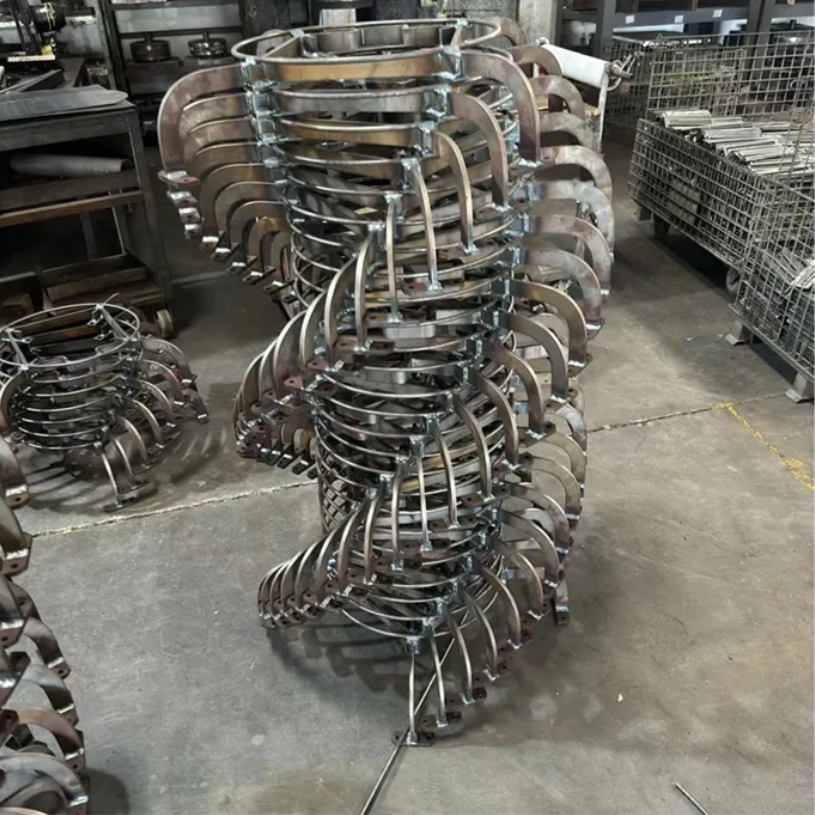

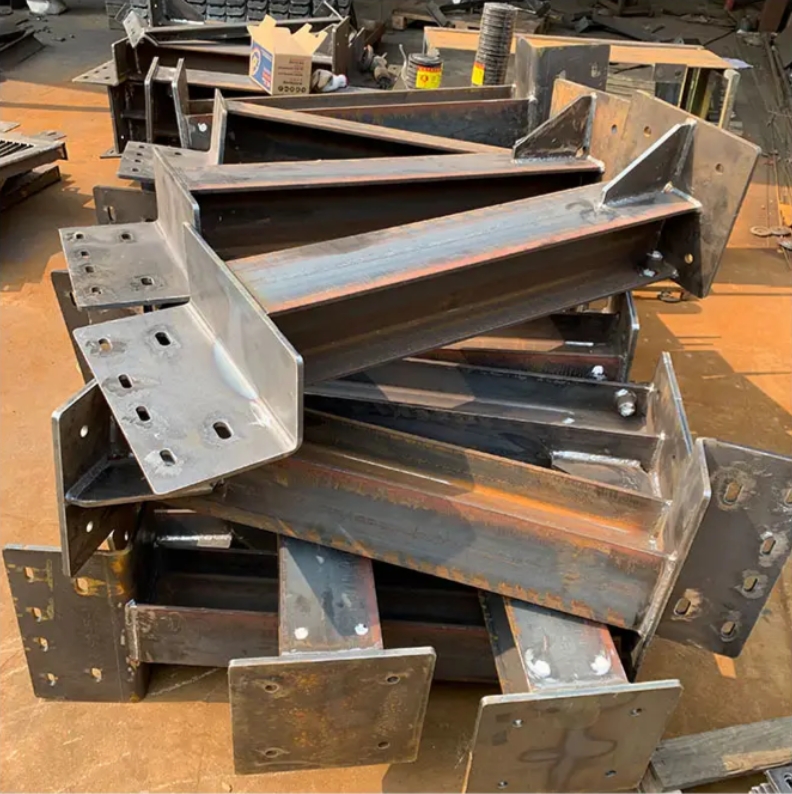

Custom corner reinforcement bracket fabrication sample 1

Custom fabricated corner bracket sample 4

Custom metal frame corner bracket sample 2

OEM corner support bracket manufacturing sample 3

Define the Frame Connection Before Fabrication

Bracket Detail	What to Specify
Joint Geometry	Inside or outside corner position, flange lengths, bracket width and bend angle.
Mounting Holes	Round holes, slots or countersinks, with sizes and positions referenced to the mounting faces.
Attachment	Bolted or welded connection, including fastener clearance or weld requirements.
Assembly Fit	Contact areas, adjacent frame profiles, installation access and critical dimensions.

For reinforcement applications, include the intended loads and frame connection details. Strength and stiffness requirements should be assessed for the complete bracket, frame and attachment arrangement.

Materials and Surface Finishes

• Cold-rolled steel: Custom formed brackets with zinc plating or powder coating options where specified.

• Stainless steel: Grade and surface requirements selected according to the application.

• Aluminum: Lightweight bracket options, with anodizing or coating reviewed for the selected alloy.

• Finish details: Specify color, visible surfaces and masking requirements for threads or contact areas.

Material grade, thickness and bend radius are reviewed together. A 90° bracket angle and its tolerance should be defined on the drawing, along with any critical hole-to-bend dimensions.

From Drawing to Finished Bracket

01. Review the Assembly
Confirm the bracket drawing, mating frame, material and order quantity before choosing the fabrication route.

02. Cut and Form
Use laser cutting, punching or stamping as appropriate, with forming operations matched to the required geometry.

03. Finish and Inspect
Check specified dimensions, mounting holes, bend angles and edge condition. Apply the agreed surface treatment.

04. Pack for Delivery
Protect finished surfaces and organize parts according to the agreed packaging requirements.

Typical OEM Applications

• Corner connections in electrical and network cabinets

• Modular equipment frames and control housings

• Corner bracing in welded metal assemblies

• Machinery supports and automation fixtures

We support sample development, small batches and repeat production. Samples can be used to confirm installation and fit before the drawing revision and production requirements are finalized.

Send Your Corner Bracket Requirements

For quotation, send your drawing or sketch with flange dimensions, material grade, thickness, hole pattern, bend angle, quantity and finish. Include the mating frame layout and critical tolerances where relevant.

If you have a sample or photos, add key dimensions and explain how the bracket attaches to your equipment. Our team can help clarify the fabrication requirements.

Email: info@hms1688.com

Get Your Custom Bracket Quote

NDA and confidentiality: Customer drawings, CAD files, samples and technical specifications are handled confidentially. NDA support is available for OEM projects.
