Custom Heat Sink Manufacturing for Thermal Control

Hongming Sheng manufactures custom heat sinks and thermal management components for power electronics, industrial equipment, telecom systems, laser devices, and energy applications.

We support aluminum and copper heat sinks, CNC machined bases, fin structures, heat pipe assemblies, and liquid cold plates according to customer drawings and thermal requirements.

Email:info@hms1688.com

Send Drawing & Get Quote

Custom Heat Sink Capabilities

● Aluminum Heat Sinks:Machined and fabricated structures for general thermal control.

● Copper Components:Copper bases and heat spreading parts for higher thermal conductivity requirements.

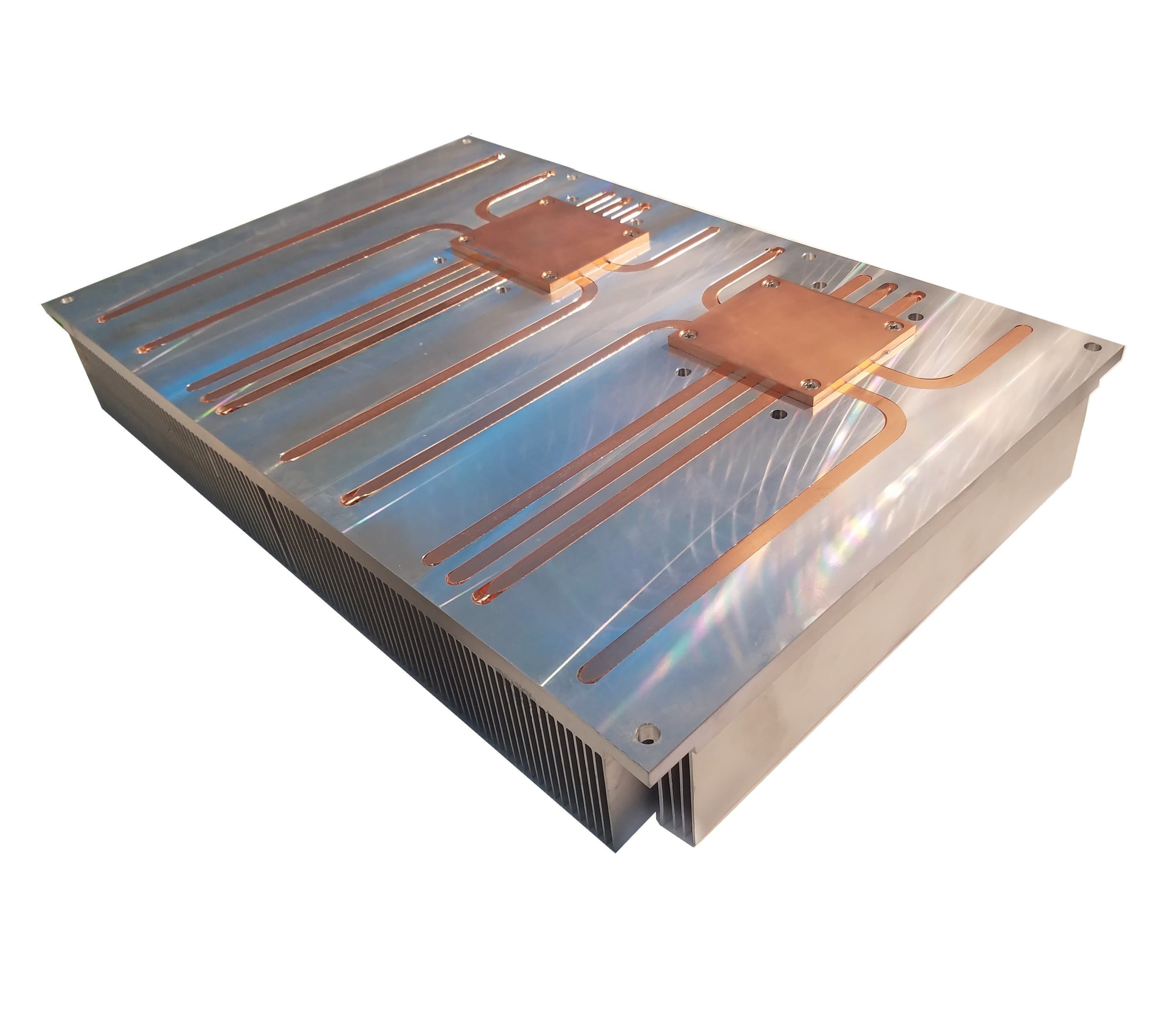

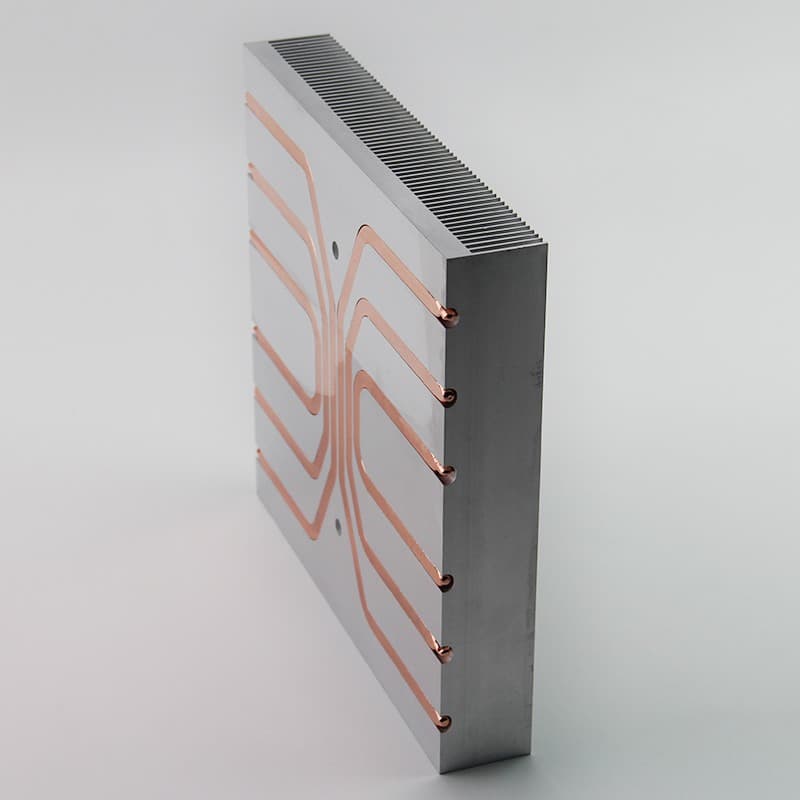

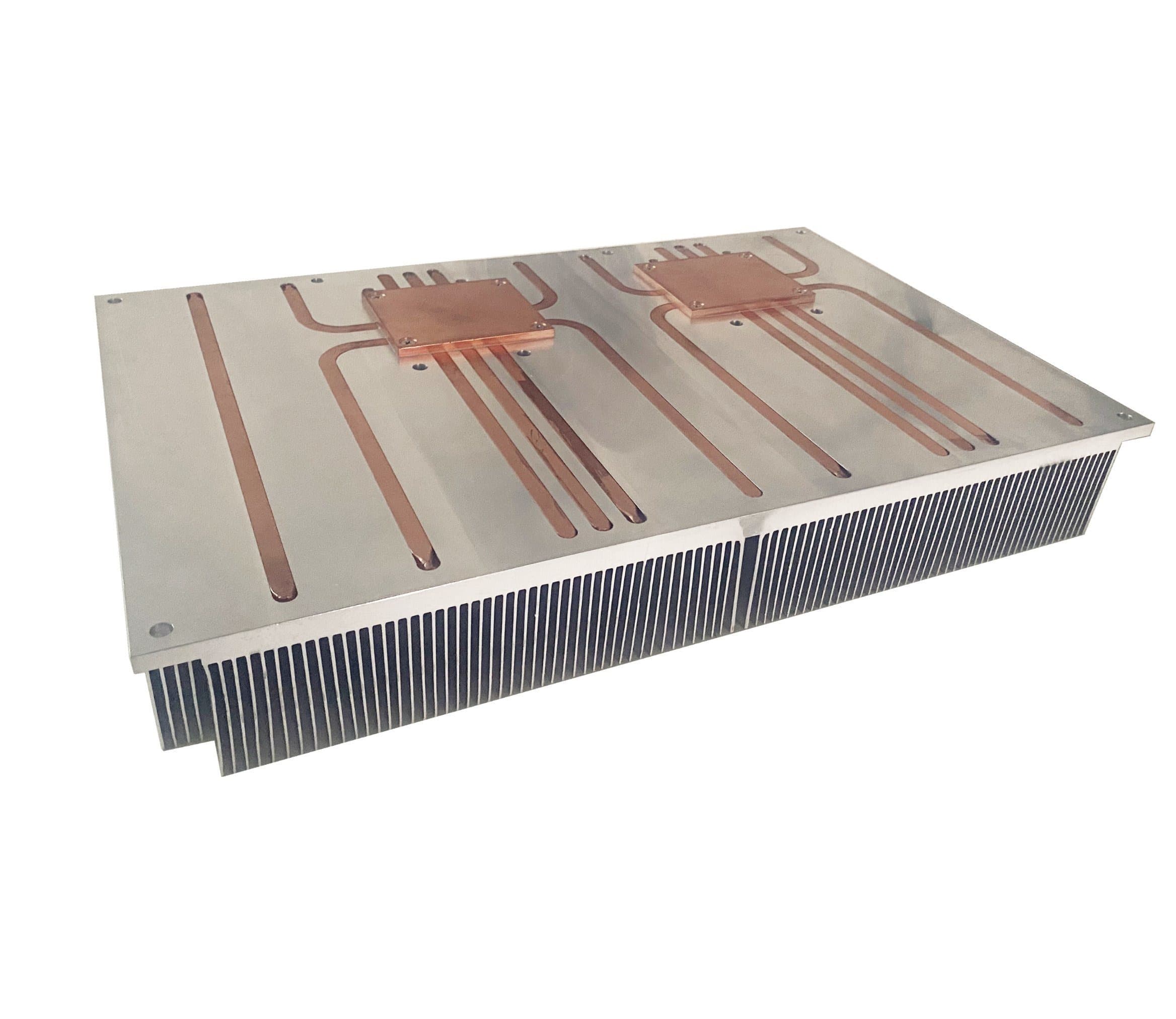

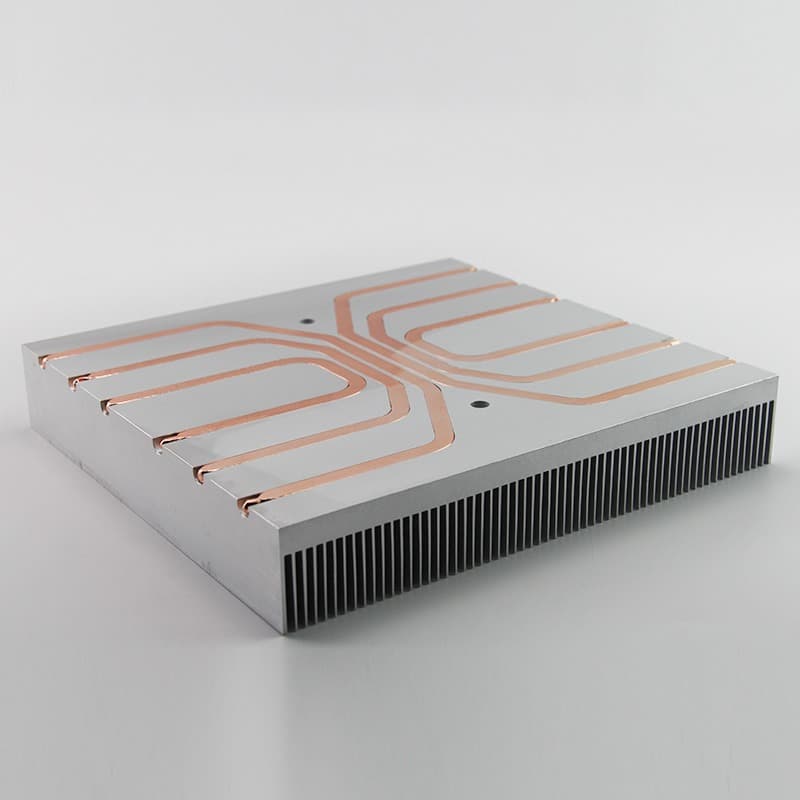

● Heat Pipe Integration:Custom routing and assembly according to space and cooling requirements.

● Fin Structures:Different fin layouts can be developed according to airflow and installation space.

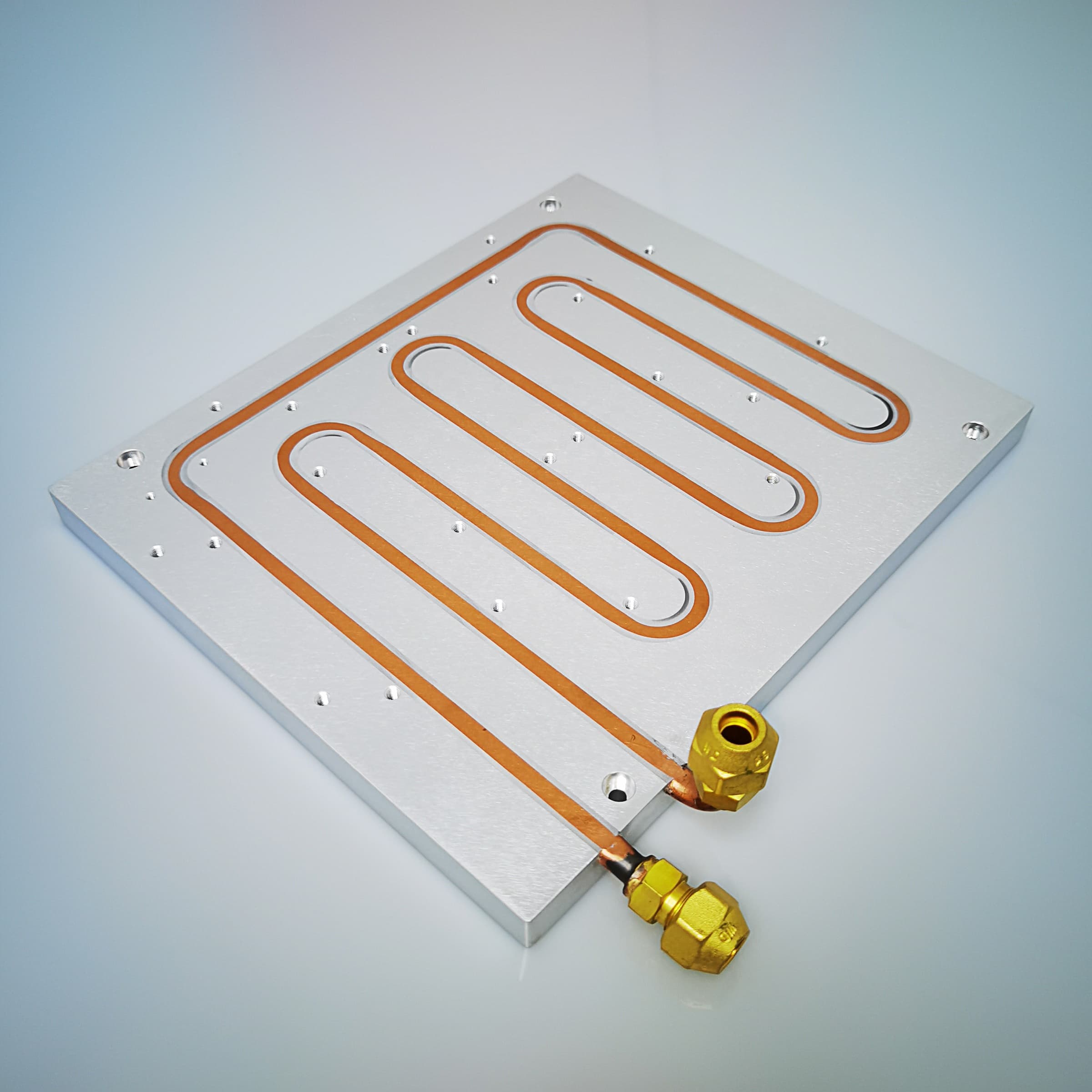

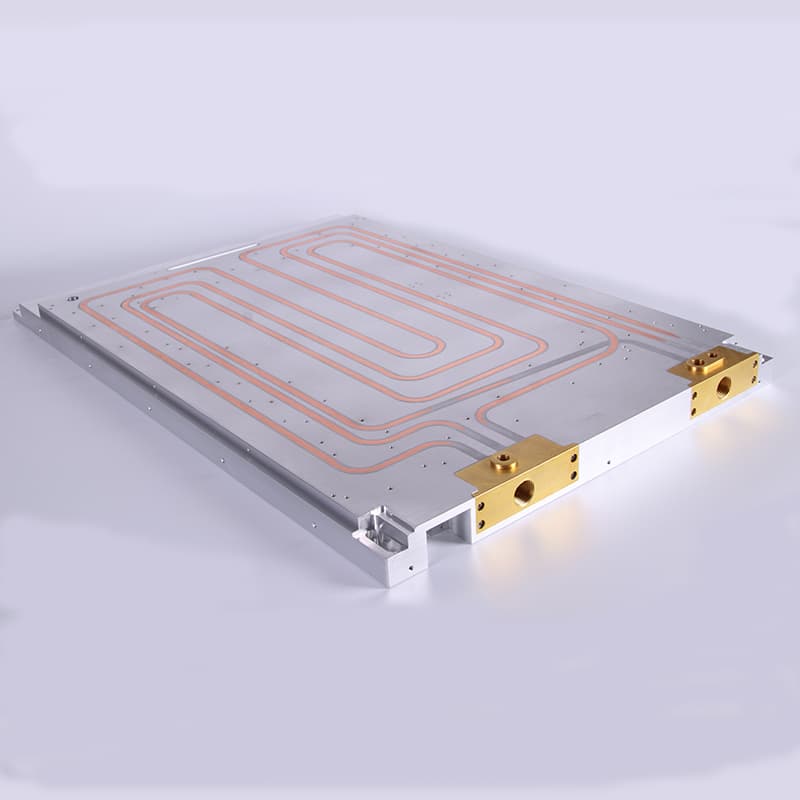

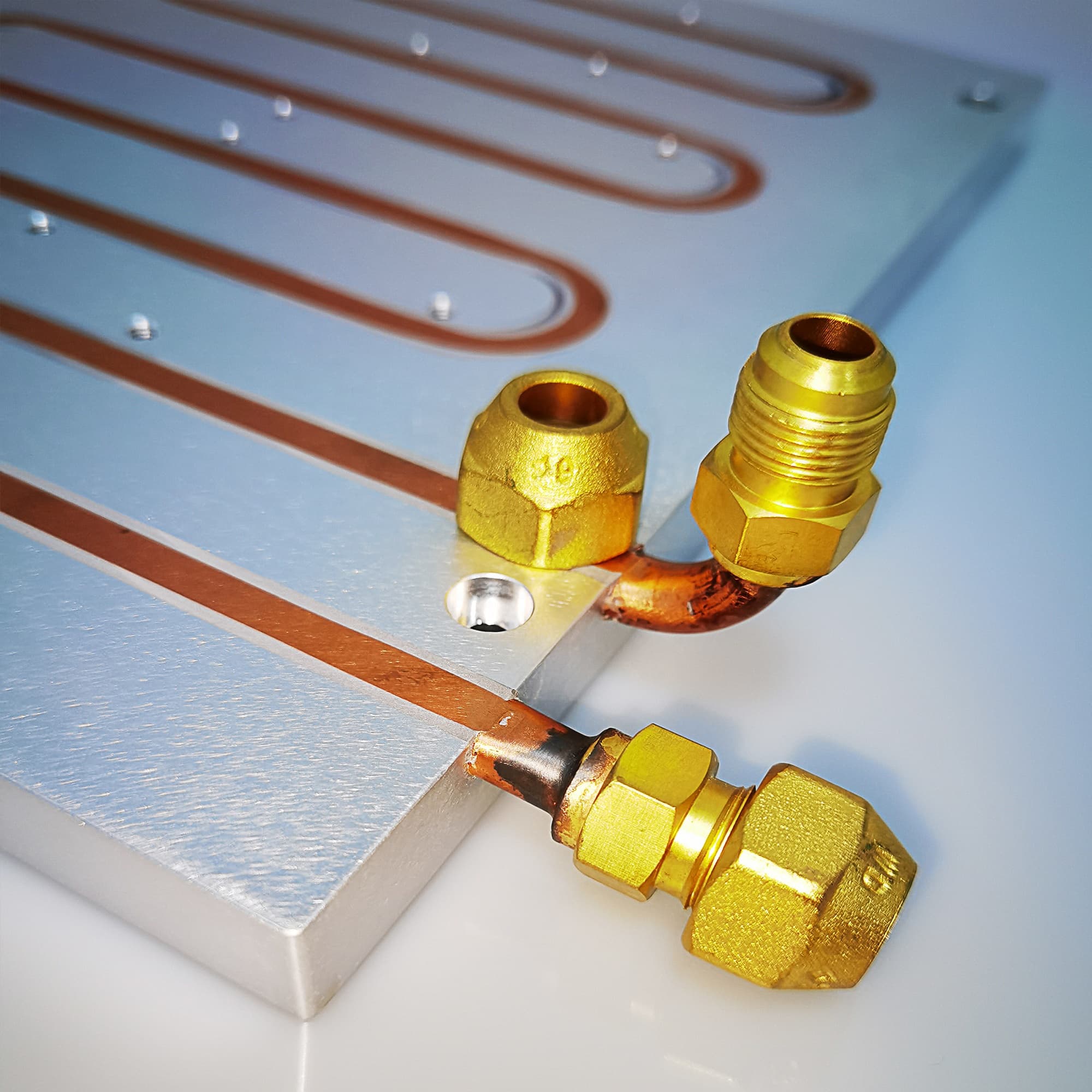

● Cold Plate Support:Liquid cooling components can be manufactured when specified by the project.

Where Custom Heat Sinks Are Used

Power Electronics Heat sinks for IGBT modules, MOSFETs, power supplies, inverters, and control electronics.	Telecom & Data Equipment Cooling components for communication devices, routers, power units, and electronic assemblies.
Laser & LED Systems Custom thermal components for laser modules, LED equipment, and other concentrated heat sources.	Energy Equipment Thermal management components for battery systems, power conversion equipment, and industrial energy systems.

From Drawing to Thermal Component

Step 1Review drawing, material, interface, and installation requirements

Step 2Evaluate machining, fin, heat pipe, or cold plate structure

Step 3CNC machining, assembly, joining, and surface treatment

Step 4Dimensional inspection and project-specific testing when required

Materials & Finishing

Aluminum Suitable for lightweight heat sinks, bases, housings, and fin structures.	Copper Used for heat spreading parts and applications requiring higher thermal conductivity.
Anodizing Common for aluminum heat sink surfaces where specified by the customer.	Other Finishes Nickel plating, passivation, polishing, and other treatments can be applied according to drawing requirements.

Need a Custom Heat Sink?

Send your 2D drawing, 3D model, material, installation space, and thermal requirements. Our engineering team can review manufacturability and recommend a suitable production approach.

Customer drawings, CAD files, and technical specifications are treated as confidential. NDA support is available for OEM projects.

Email:info@hms1688.com

Upload Drawing & Get Heat Sink Quote
