CATEGORIESTube Component & Frame Examples

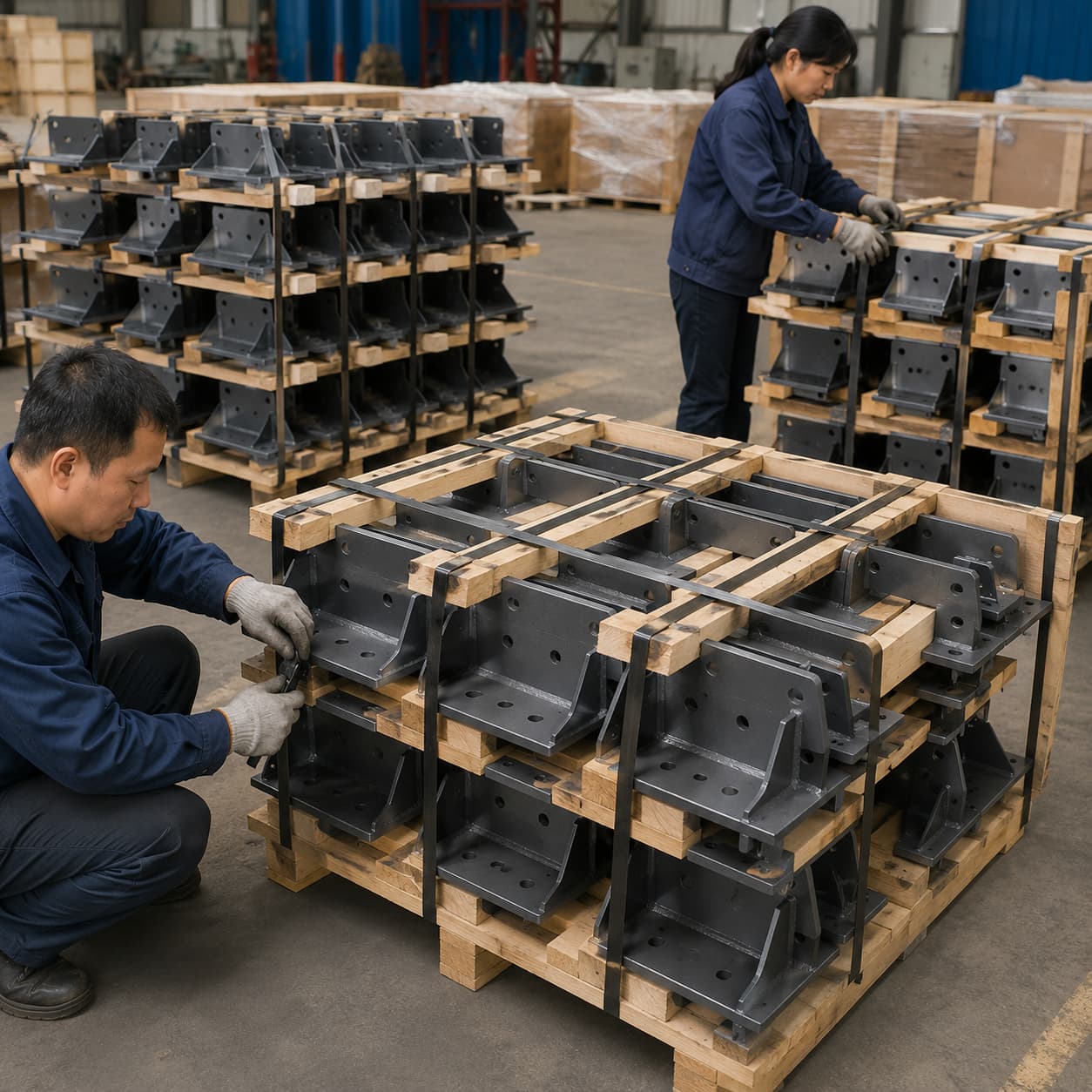

Hongming Sheng manufactures custom tube structures, welded tube components, and industrial metal frames according to customer drawings for OEM equipment and structural applications.
From Tube Components to Welded Frames
Our service covers tube laser cutting, bending, welding, finishing, and assembly, with support from prototype samples to production orders.
Email: info@hms1688.com
Get Tube Fabrication Quote| Tube Laser Cutting | Cut tube profiles and required openings according to customer drawings. |
| Square & Round Tube Processing | Custom components made from square and round metal tubes. |
| Tube Bending | Form tubes to the specified shape, with bend details reviewed before production. |

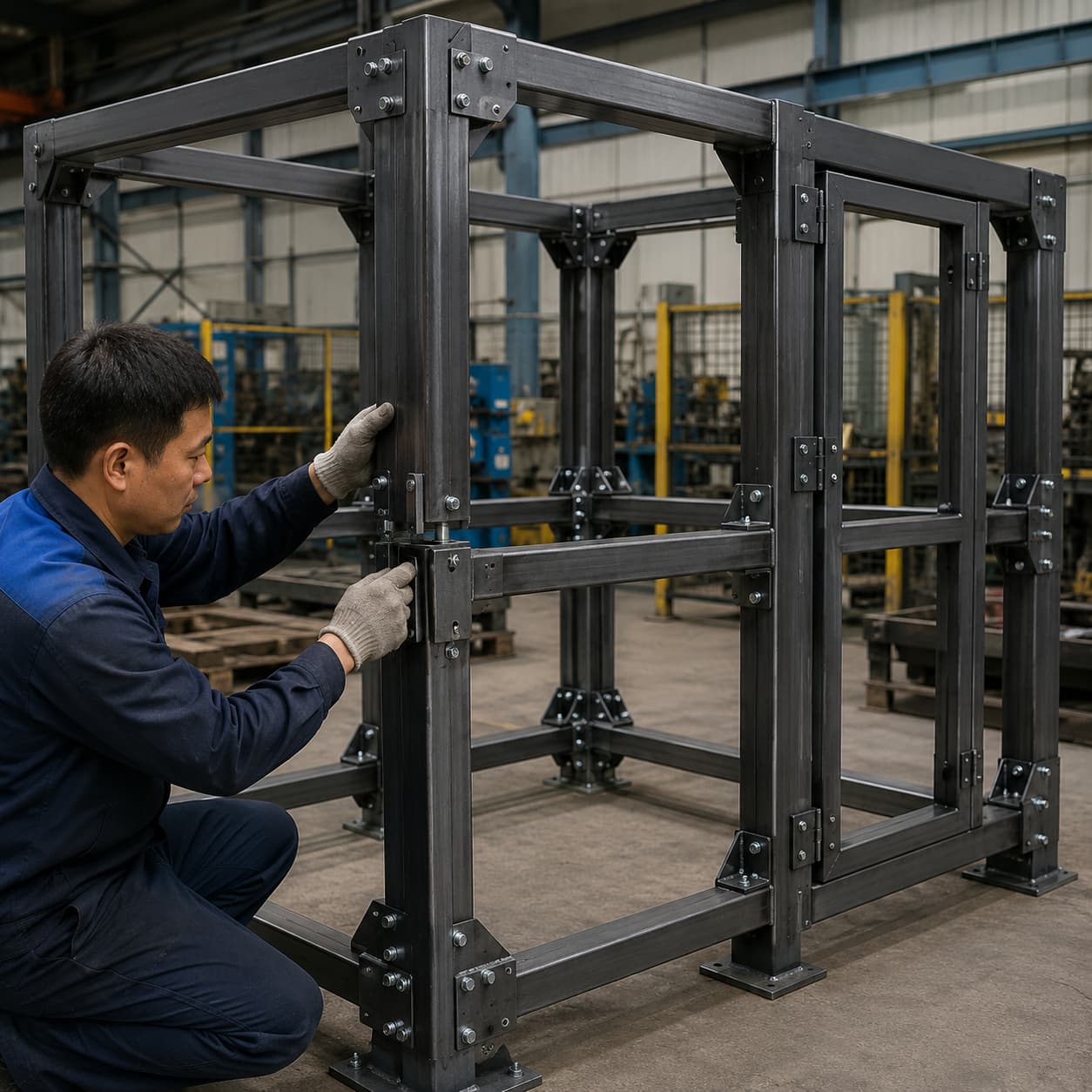

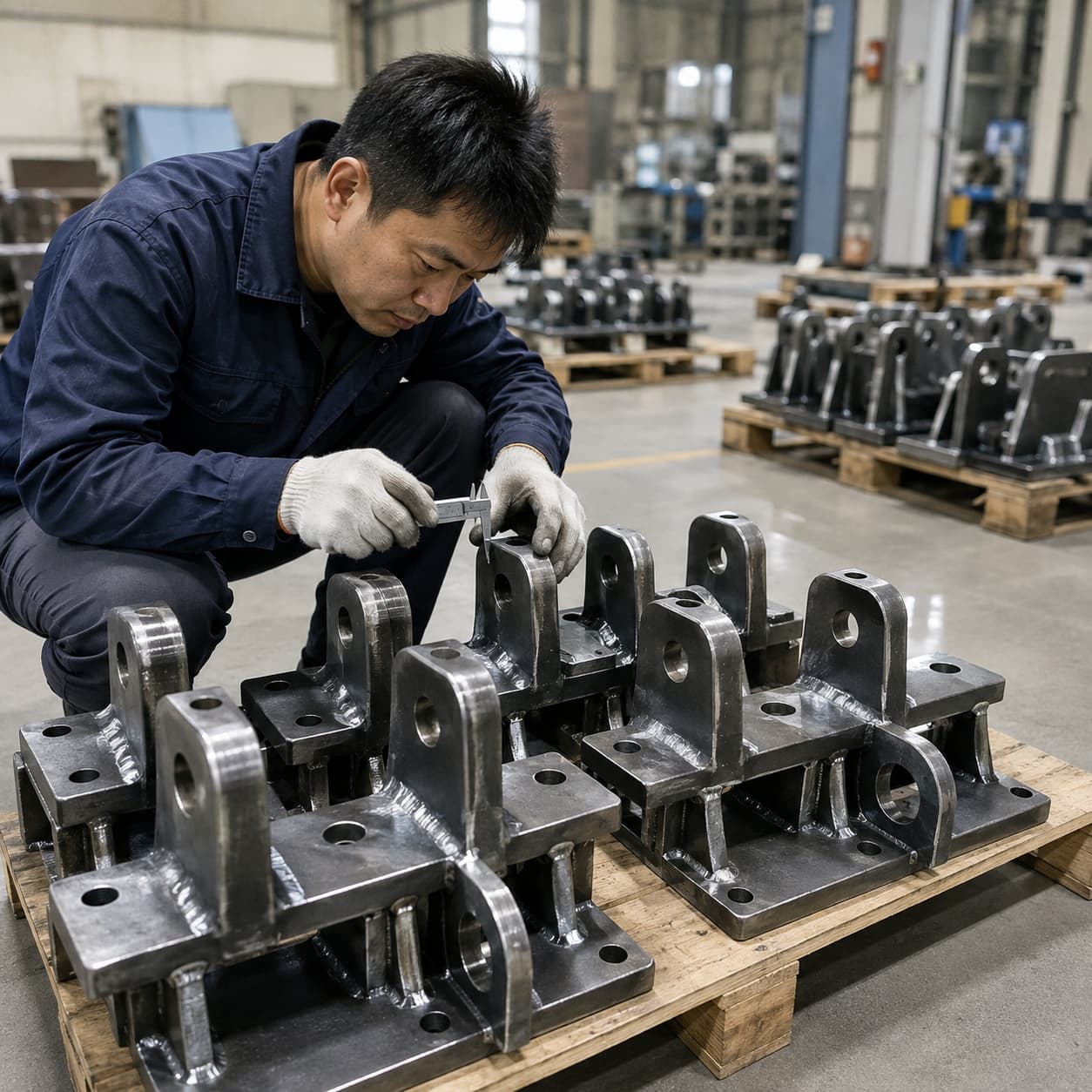

| Welding Assembly | Join tube components into frames, supports, and welded assemblies. |
| Surface Finishing | Provide finishing according to the material and project requirements. |

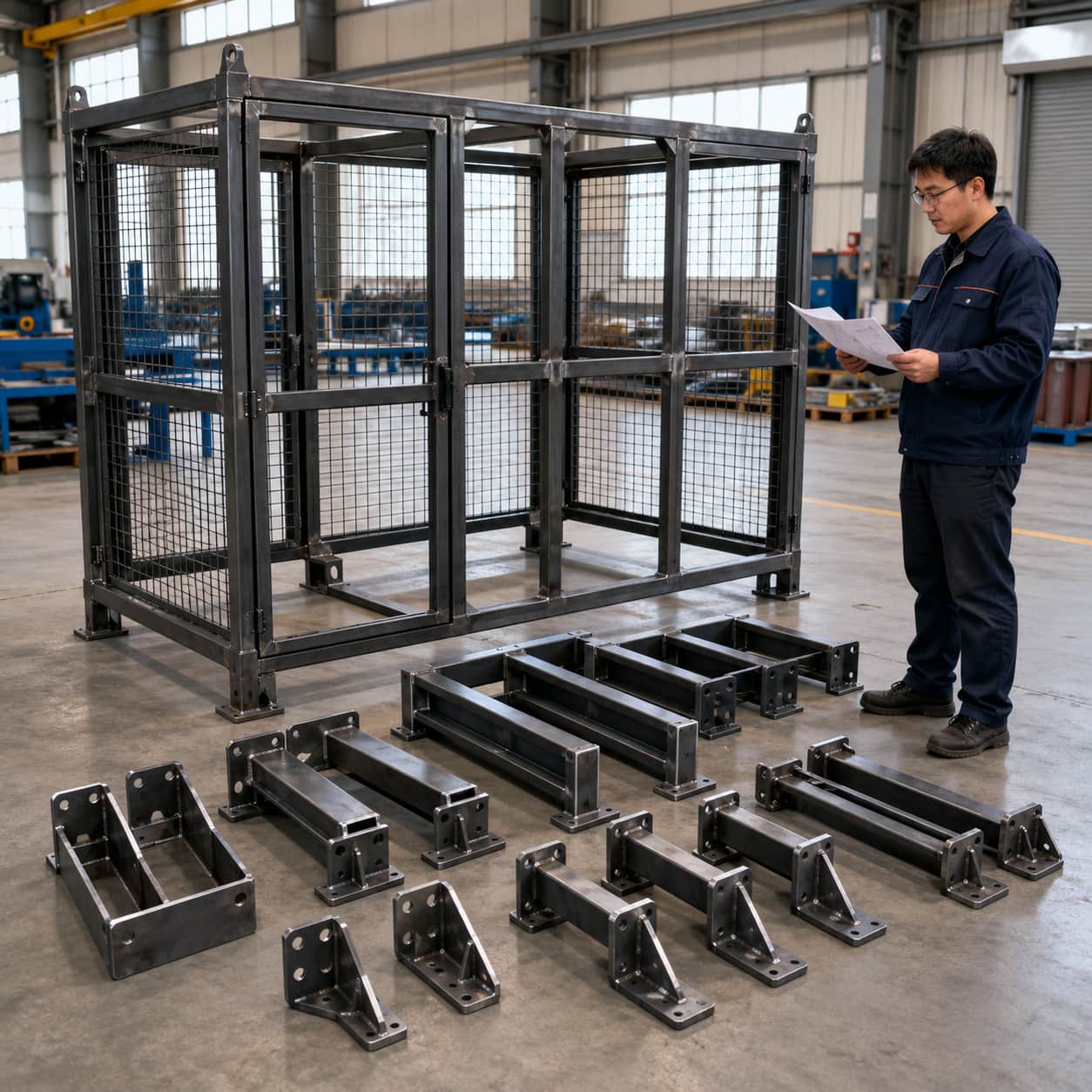

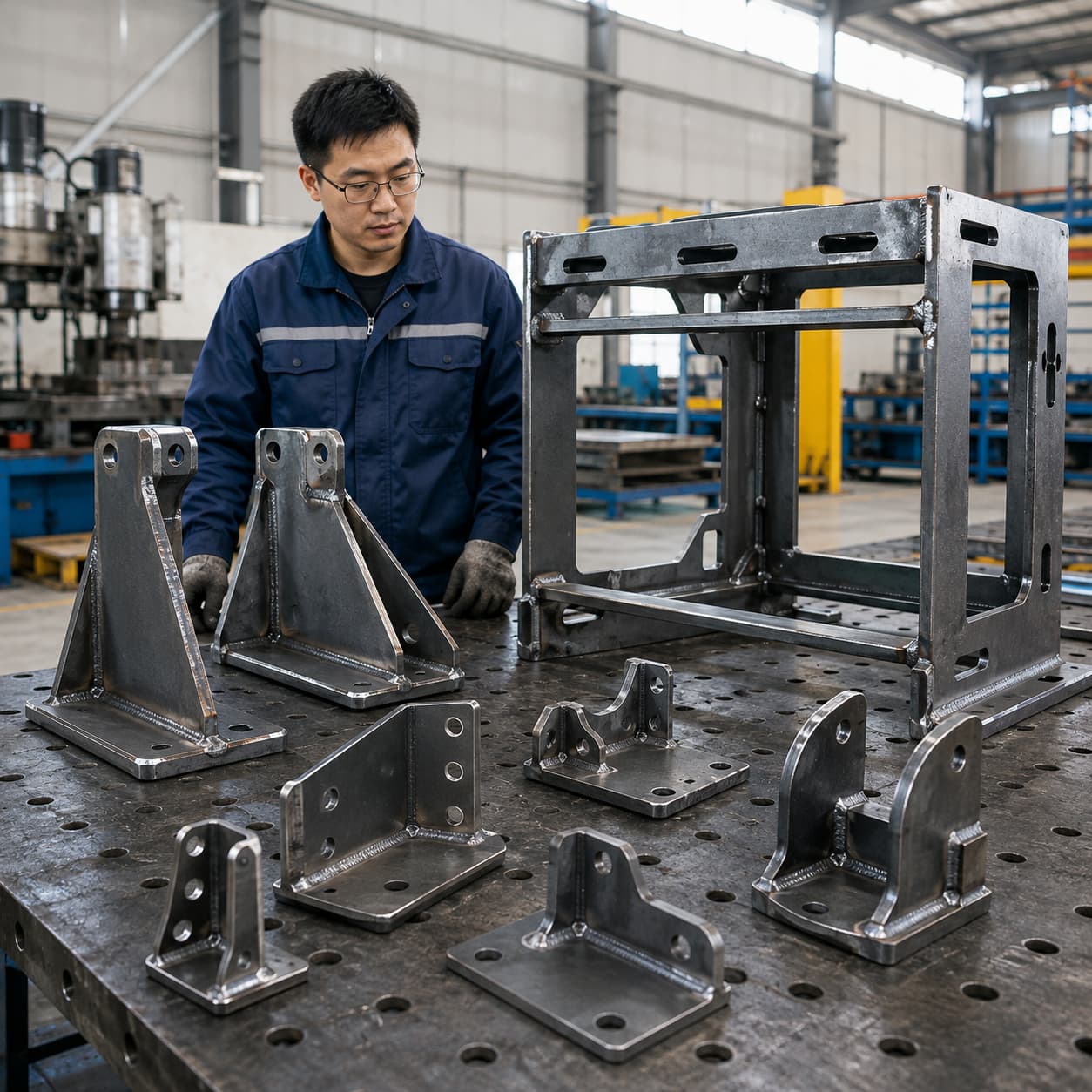

| Custom Fabrication | Manufacture tube structures and related components for OEM applications. |
| Materials We Support Carbon steel | Typical Applications Industrial equipment frames |
Manufacturing steps and inspection requirements are reviewed together according to the drawing and agreed project scope.
| Step | Manufacturing | Inspection Focus |
|---|---|---|
| 01 | Drawing Review Review tube profiles, dimensions, material, and assembly requirements. | Confirm the required inspection features. |
| 02 | Tube Cutting Cut tube components to the specified lengths and profiles. | Tube dimension inspection. |
| 03 | Forming Produce the required bends and formed geometry. | Check formed dimensions against the drawing. |

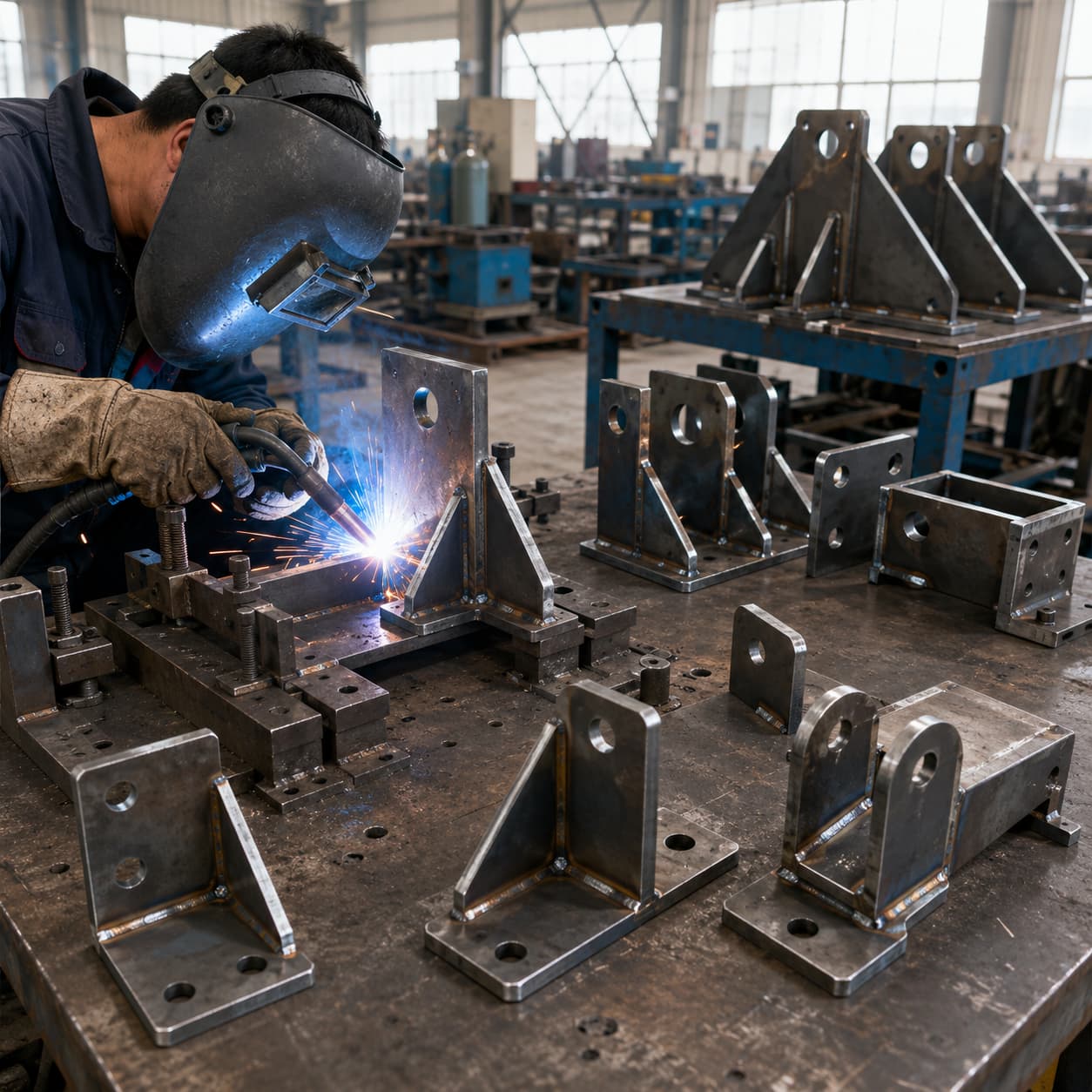

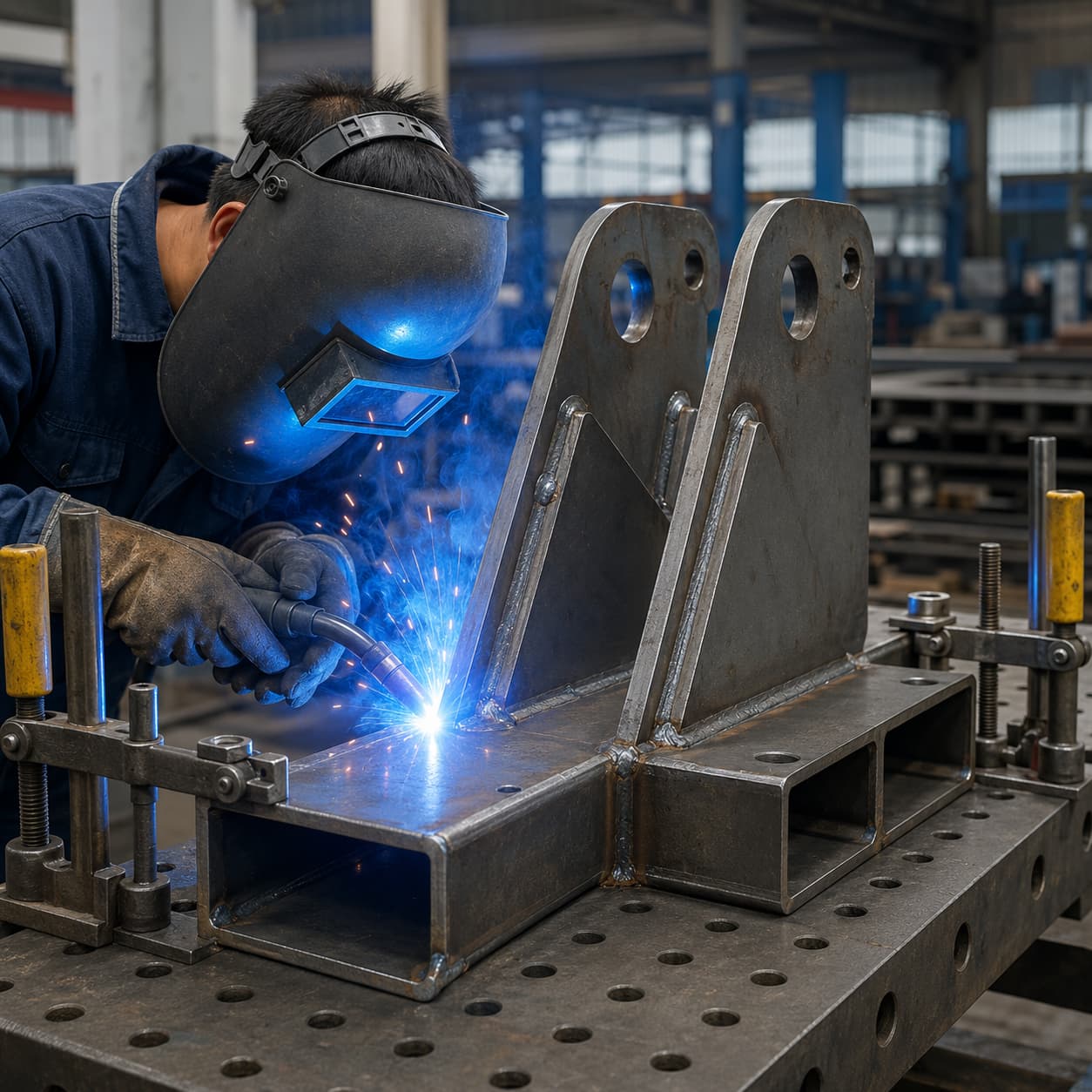

| 04 | Welding Join components into the required tube structure. | Welding quality check. |

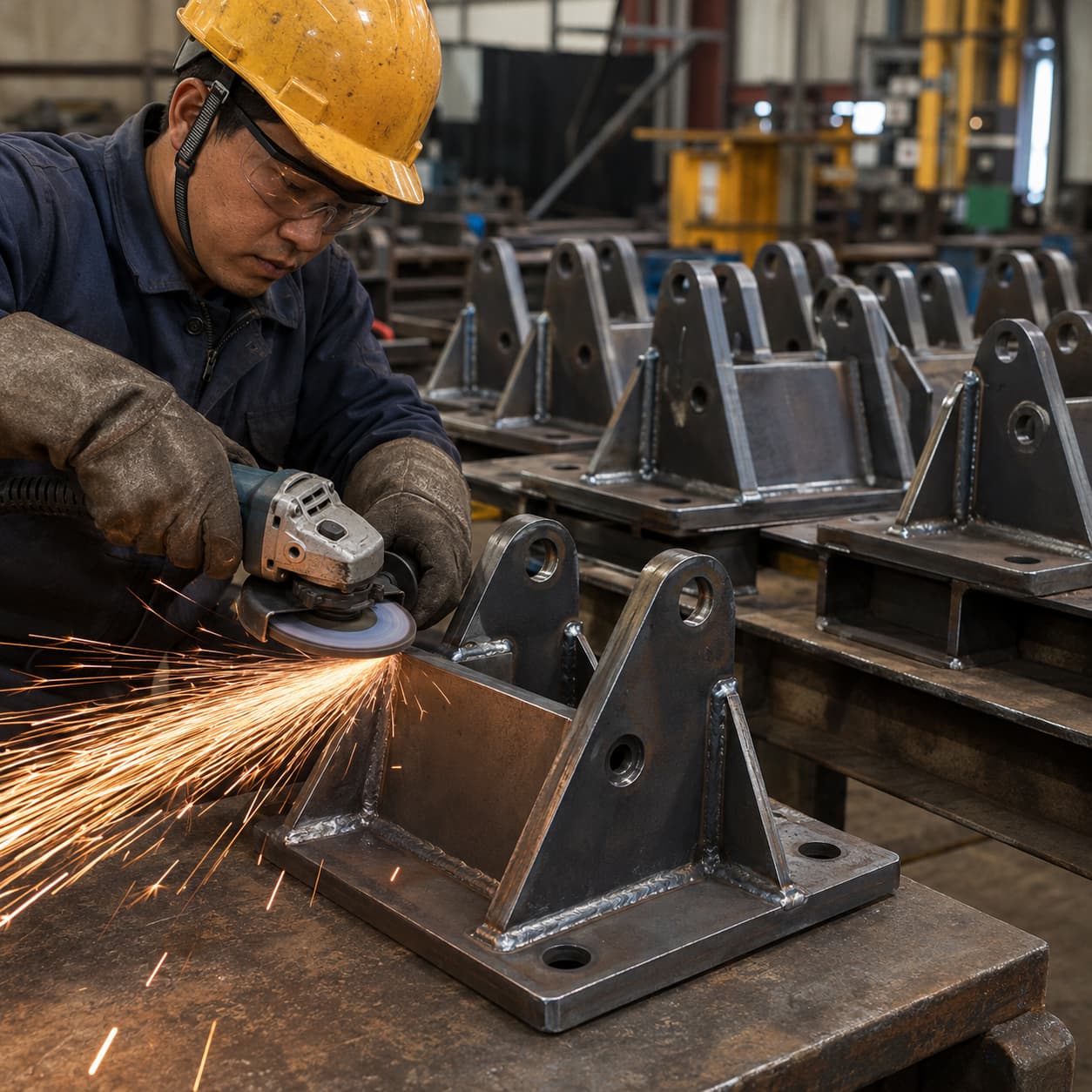

| 05 | Finishing Apply the specified surface finish. | Assembly verification at the agreed stage. |

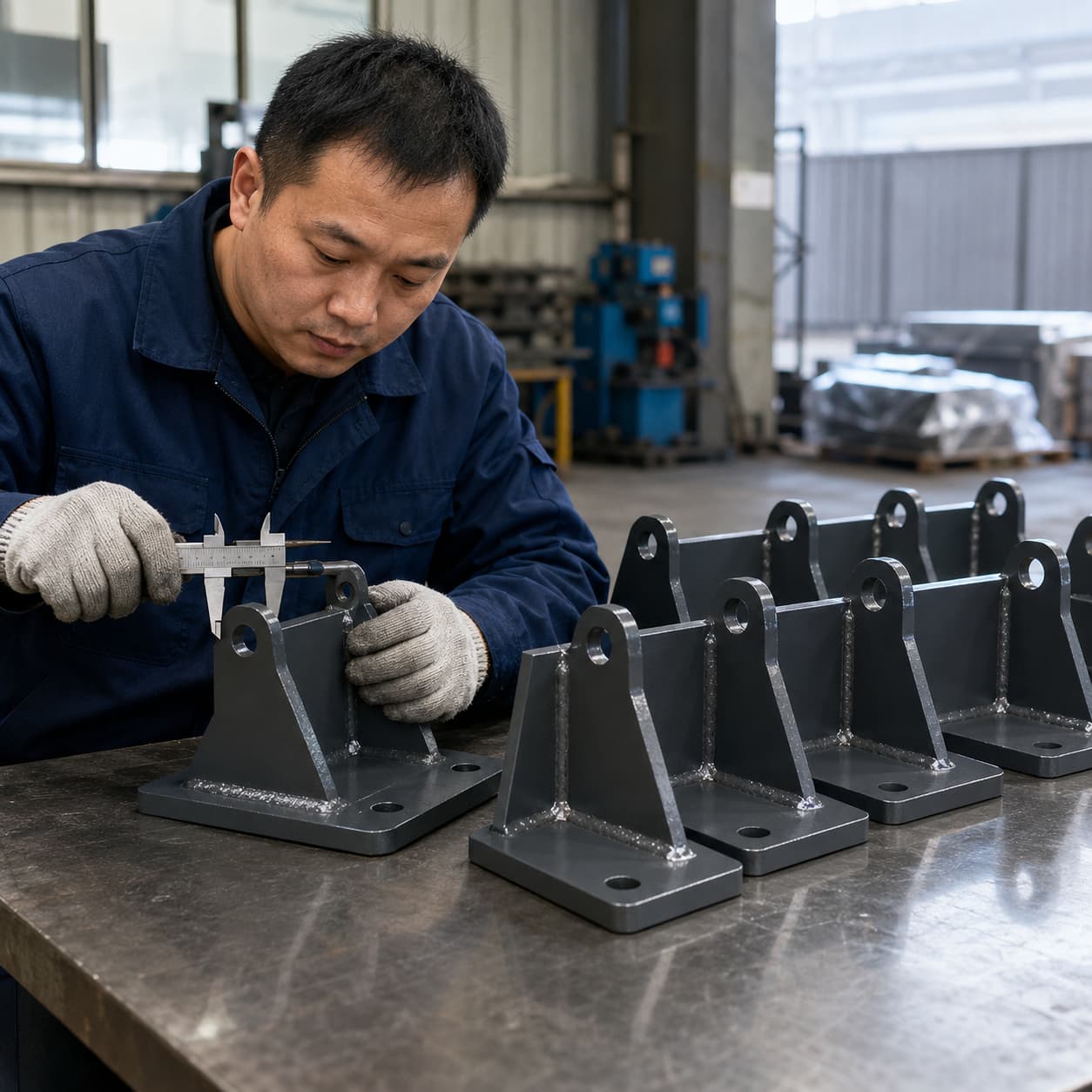

| 06 | Inspection Review the completed components before shipment. | Final inspection before shipment. |
Whether you need individual tube parts or a welded frame assembly, we provide customized fabrication based on your drawings and application requirements.
Prototype samples can help review tube dimensions, welding quality, and assembly fit before production orders.
Send Your Tube Fabrication Requirements
Please provide drawings, tube profile and dimensions, wall thickness, material, quantity, finish, and any bending, welding, or assembly requirements.
Email: info@hms1688.com
Request Tube Review & QuoteSend technical files by email. Use the inquiry form to leave contact information and project details.
Customer drawings, samples, and technical information are handled confidentially. NDA support is available for OEM projects.
Contact us and just send us your drawing (SolidWorks,ProE,CAD,PDF,DXF...)
