Custom Stainless Steel Liquid Cooling Connectors for Servers and Industrial Equipment

LIQUID COOLING / CUSTOM CNC COMPONENTS

Compact connections for cooling loops begin with well-defined interfaces, sealing details and installation space.

Hongming Sheng supports custom manufacturing of stainless steel liquid cooling connector components, including machined bodies, threaded adapters and mating parts. Complete connector assembly requirements can be reviewed according to customer drawings and specifications.

The illustrations below show connector configurations, machining stages, inspection concepts and cooling-system integration options for project discussion.

info@hms1688.com Request Connector Manufacturing Quote

Connector Configurations and Mating Interfaces

A connection layout should account for hose direction, thread engagement, coupling access and the space needed to connect or remove the mating part.

Straight and Threaded Connections

Straight connector bodies and threaded adapters can be reviewed for inline installations, equipment ports and manifold interfaces. Specify the thread standard, sealing method and required engagement.

Elbow and Quick-Connect Designs

Right-angle layouts and quick-connect configurations address different routing and maintenance needs. Mating geometry, locking features and seal details must be defined for the intended system.

Stainless steel threaded liquid cooling connector illustration

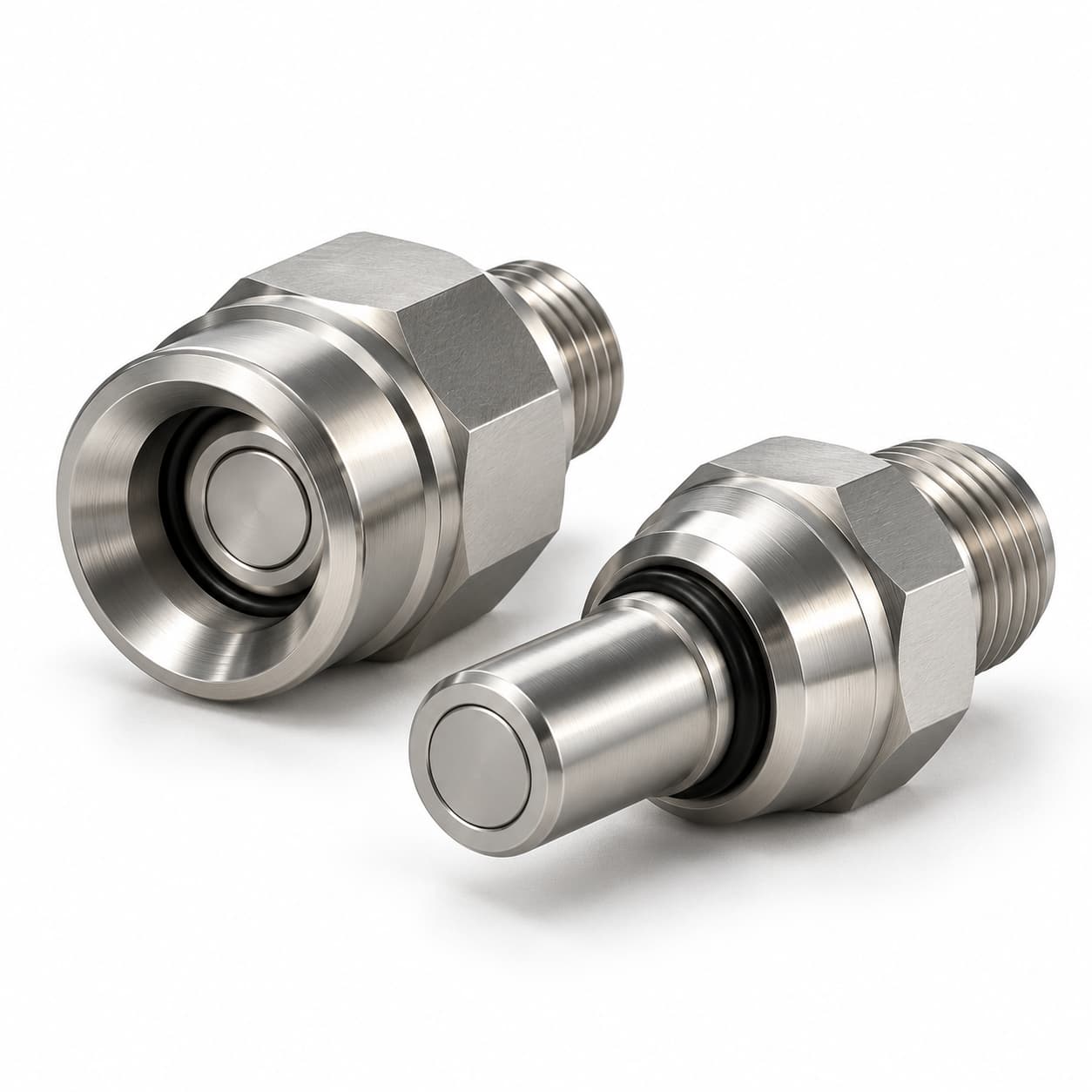

Straight mating liquid cooling connector pair illustration

Right-angle hose connection and mating plug illustration

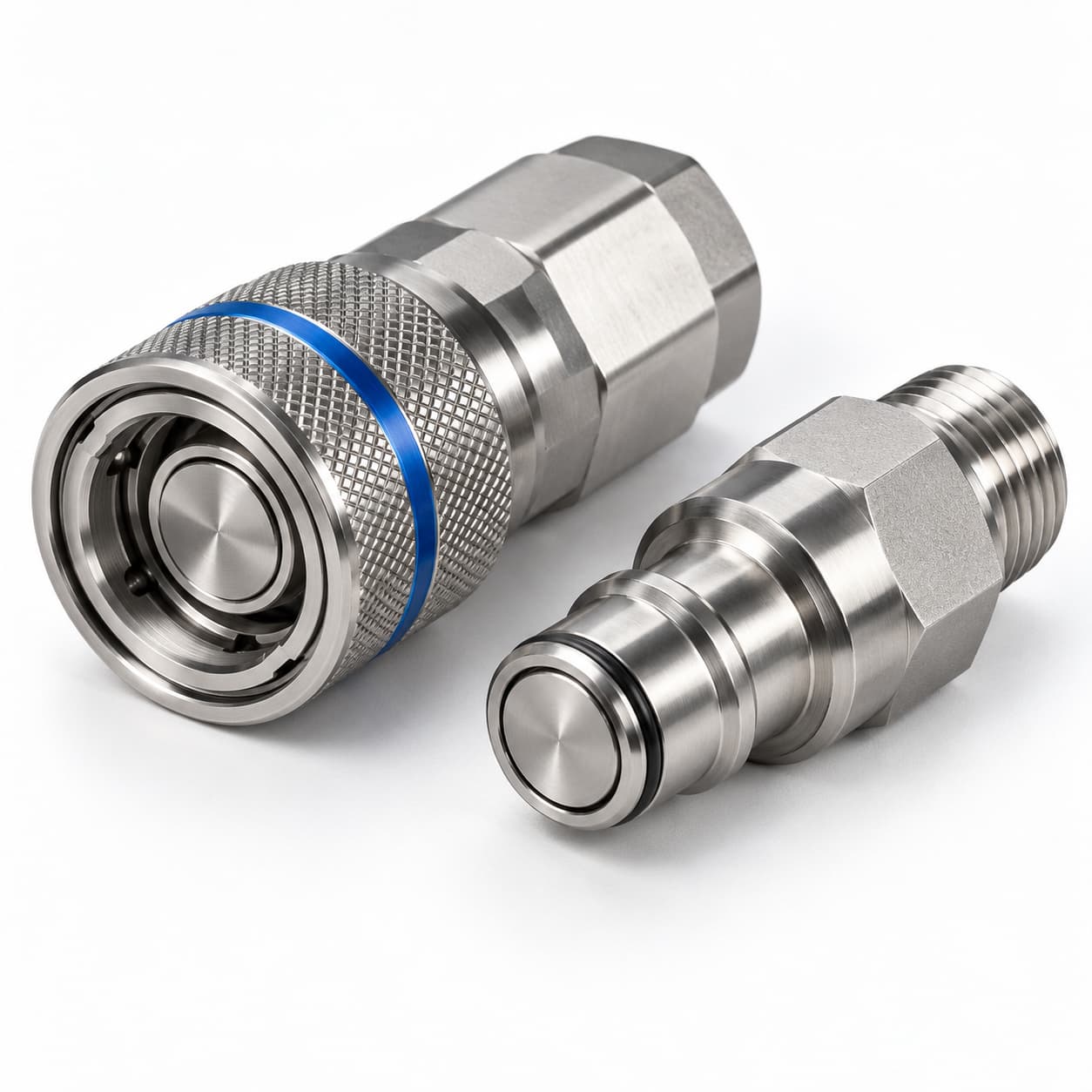

Stainless steel quick-connect coupling and plug illustration

Scroll horizontally to view all configurations.

Manufacturing from Drawing to Finished Components

Engineering Review: Confirm the material grade, drawing revision, mating dimensions, thread specification, sealing surfaces and production quantity before planning the process.
CNC Turning: Review external diameters, bores, shoulders, grooves and threaded features against the component drawing. Identify the surfaces that control assembly fit.
Secondary Machining: Plan milling, drilling or other operations for flats, side features and mounting details where required. Confirm edge conditions and deburring requirements.
Cleaning and Assembly: Define cleanliness, handling, seal installation and packaging requirements. Any springs, seals and other purchased components need agreed specifications.

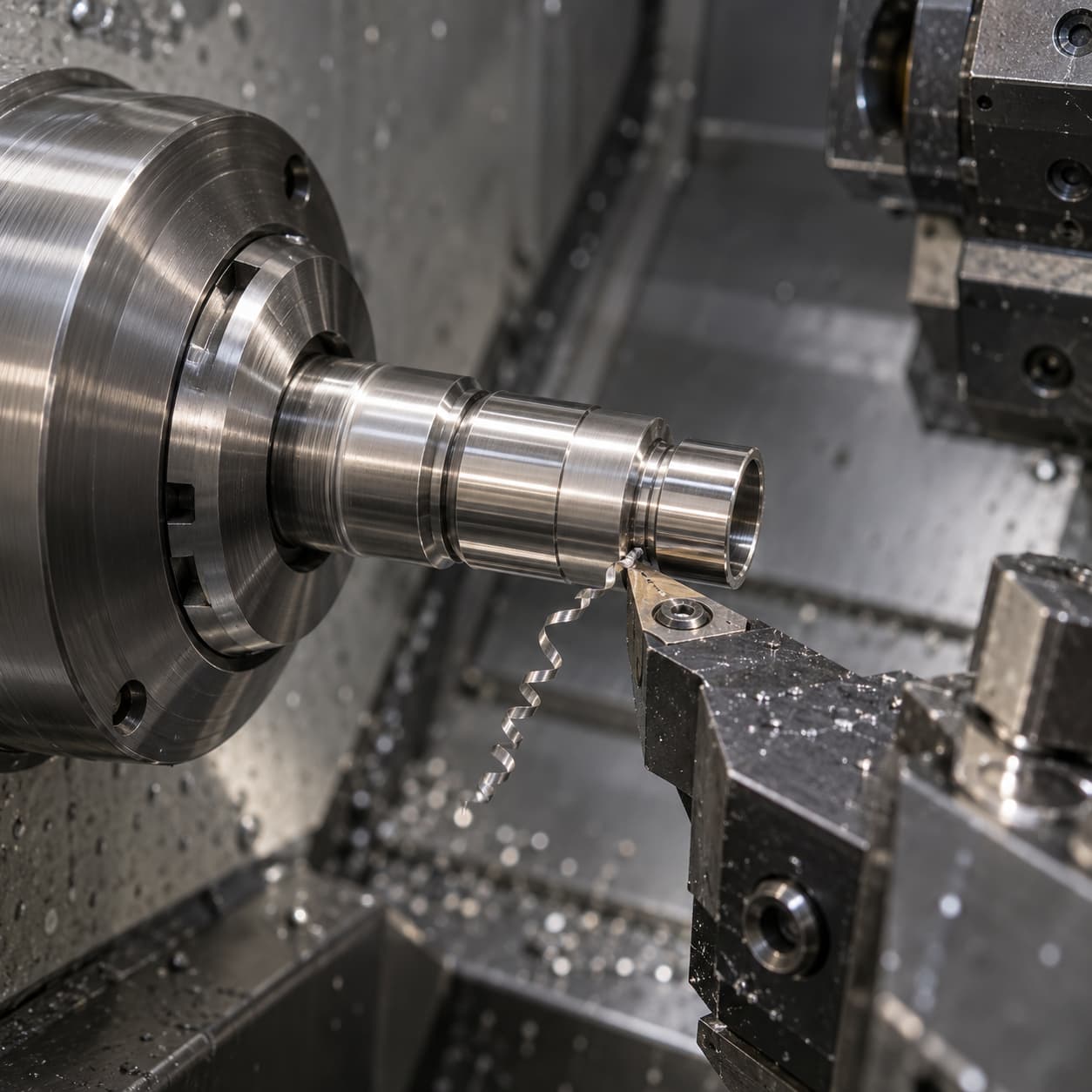

CNC turning of a stainless steel connector body illustration

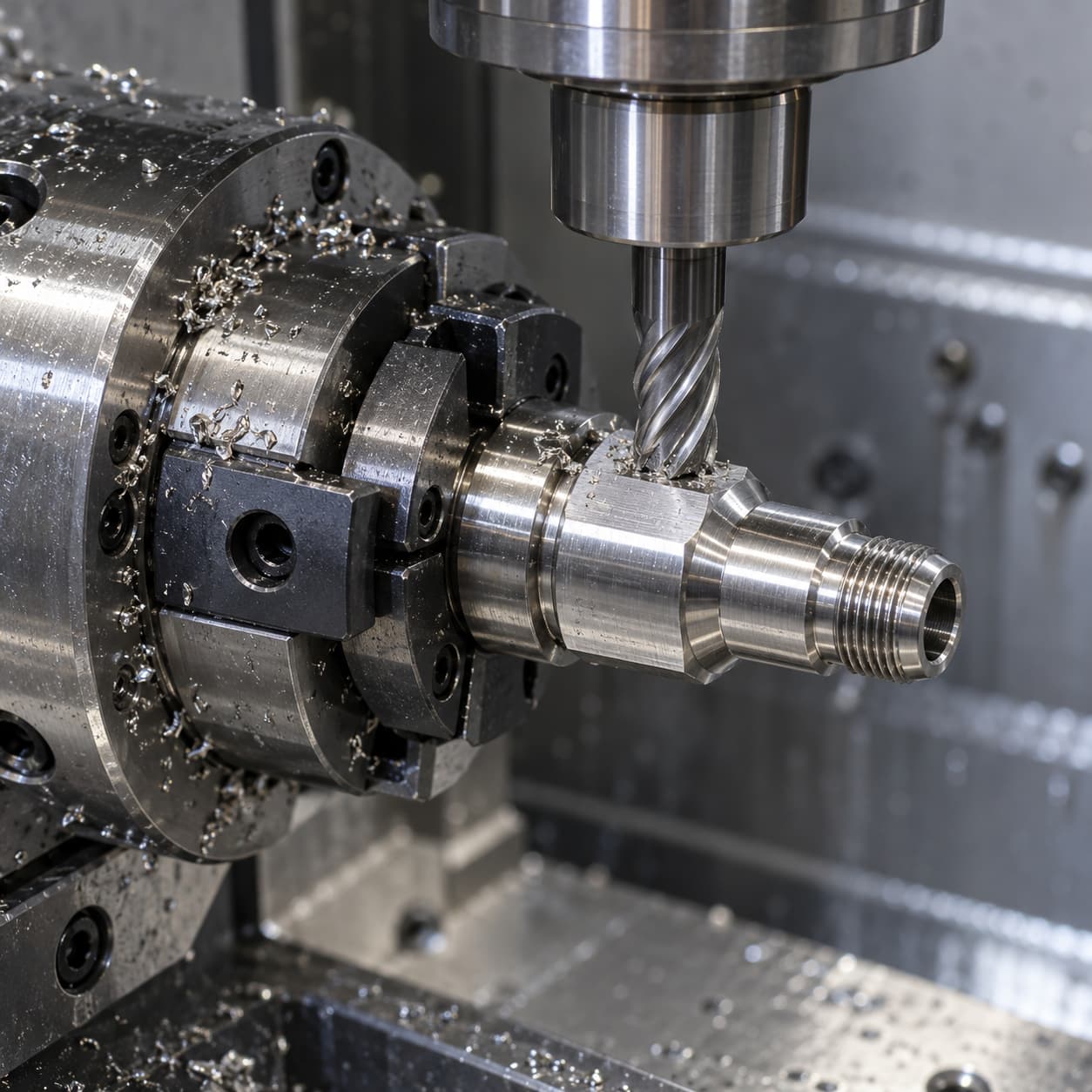

Secondary milling of a connector component illustration

Cleaning basket with machined connector components illustration

Connector assembly with seals and spring components illustration

Define Inspection and Functional Test Requirements

Dimensional inspection and functional testing answer different questions. A project specification should state both the features to measure and the performance that the assembled connection must demonstrate.

Dimensional Verification

Thread dimensions and engagement requirements
Critical diameters and mating interfaces
Seal groove geometry and surface requirements
Overall length and installation dimensions

Functional Verification

Leak test medium, pressure and acceptance criteria
Flow rate and allowable pressure drop
Connection and disconnection conditions
Required cycling, temperature and documentation scope

Dimensional inspection of a connector with a probe illustration

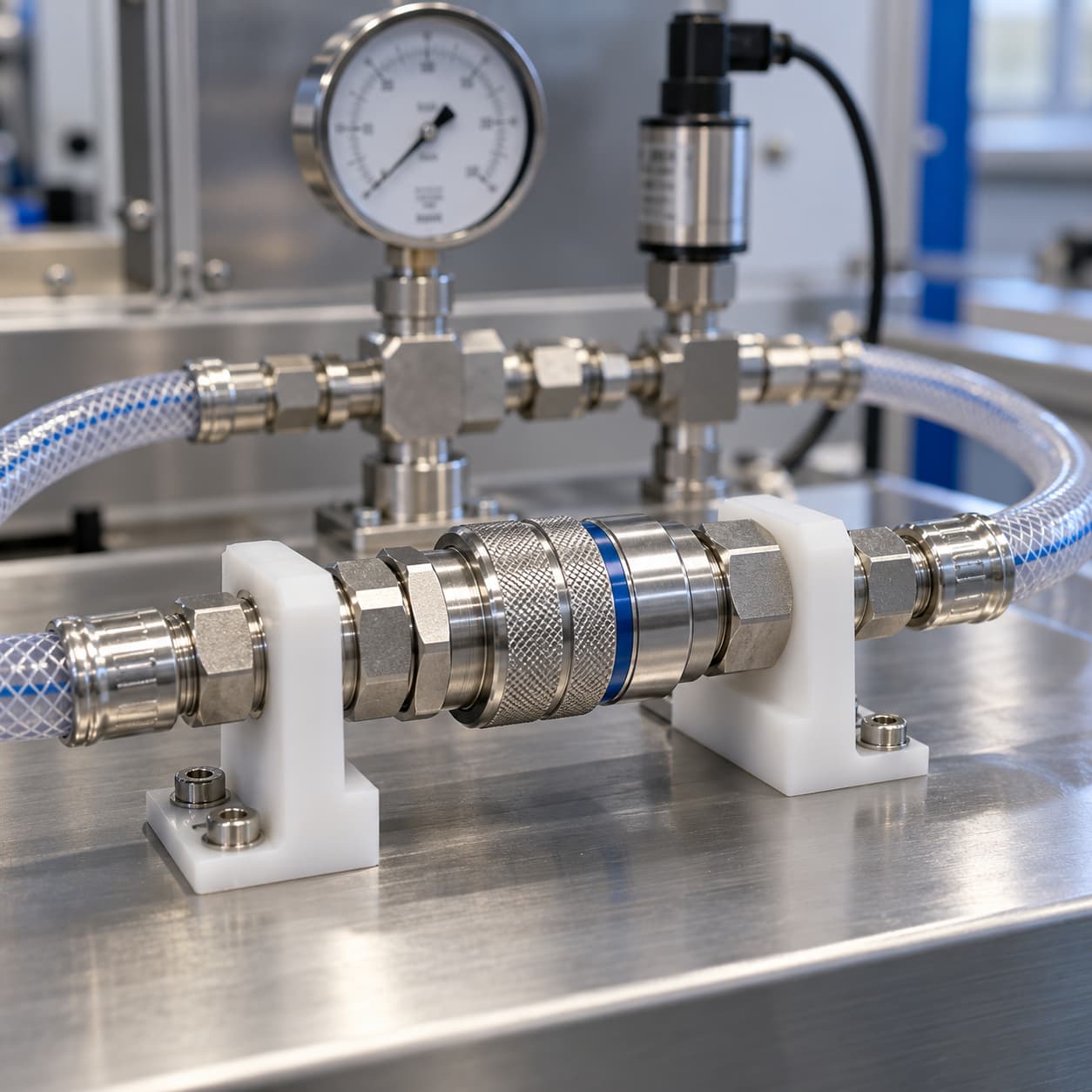

Liquid cooling connector pressure test setup illustration

Instrumented connector flow and pressure drop test concept

Performance is confirmed for the specified design. Pressure rating, coolant compatibility, leakage limits and service life are not established by appearance. Test capability, method and acceptance criteria are agreed during project review.

Integration in Servers and Cooling Equipment

Server Cooling Loops

Connector interfaces for cold-plate assemblies, hose connections and service access within the available chassis space.

Rack and Manifold Connections

Connection layouts for supply and return lines, manifold spacing and equipment maintenance.

Compact Cooling Modules

Small connector components for modules with restricted routing space and defined mechanical interfaces.

Server chassis blind-mate liquid cooling interface concept

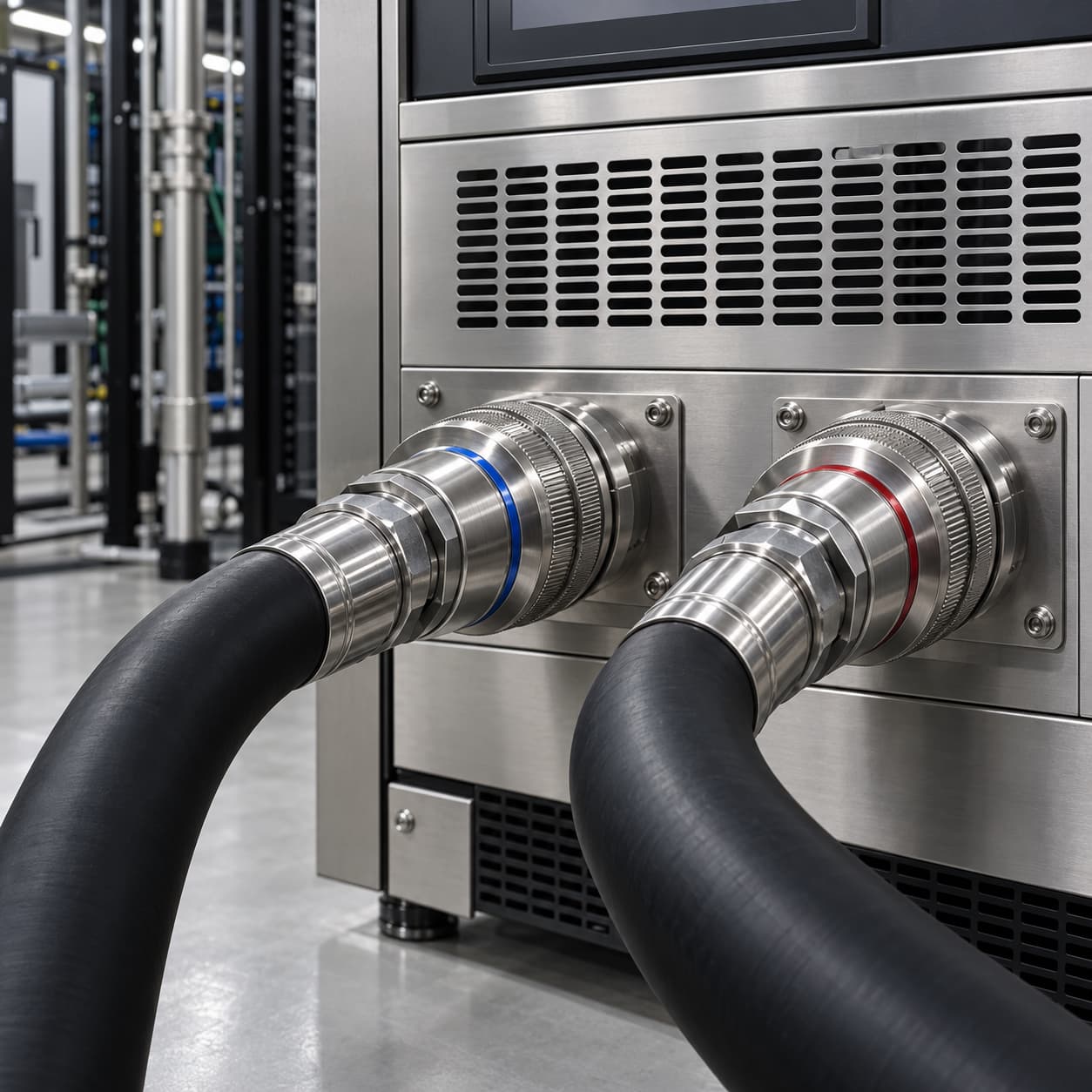

Supply and return hose connections on cooling equipment illustration

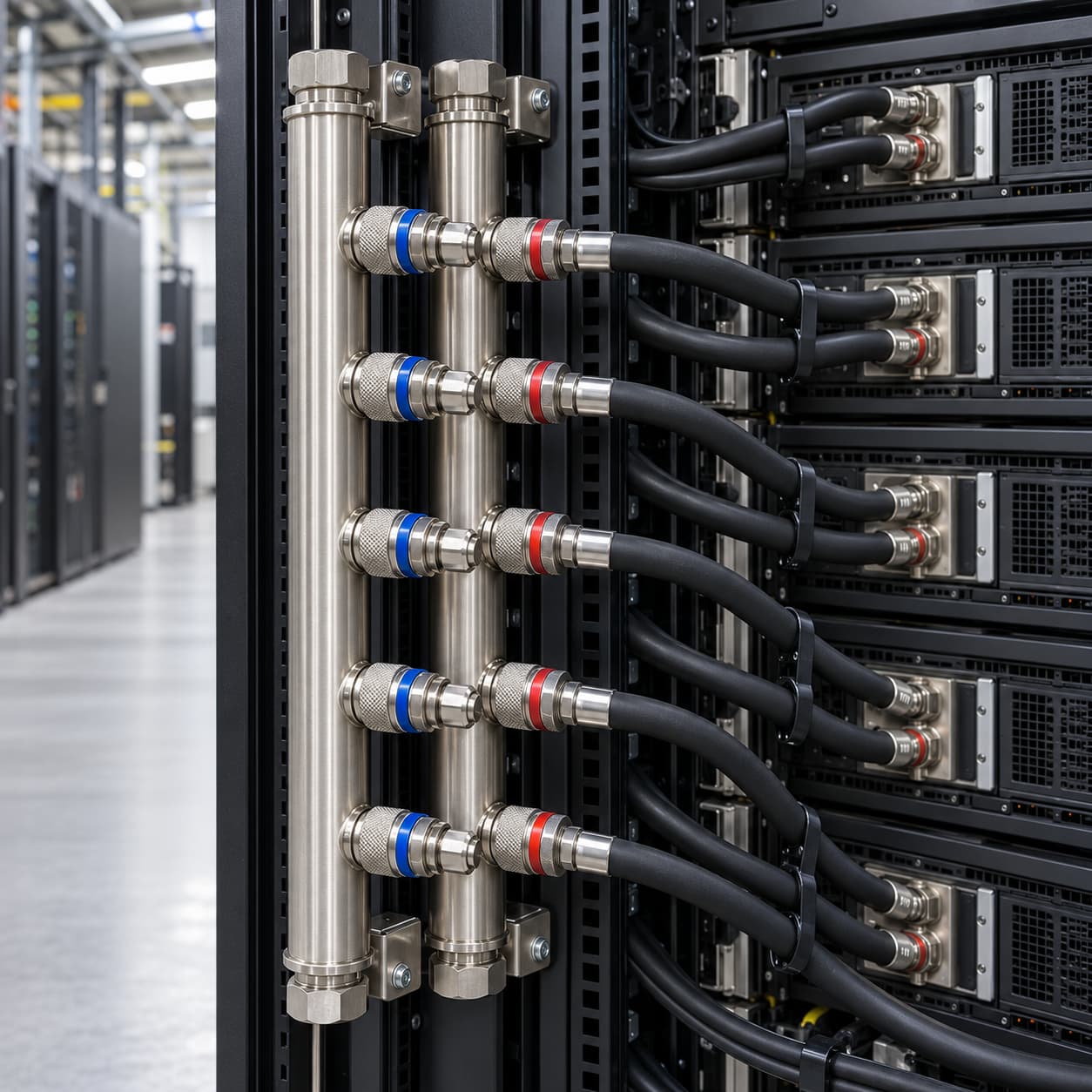

Rack manifold with multiple liquid cooling connections illustration

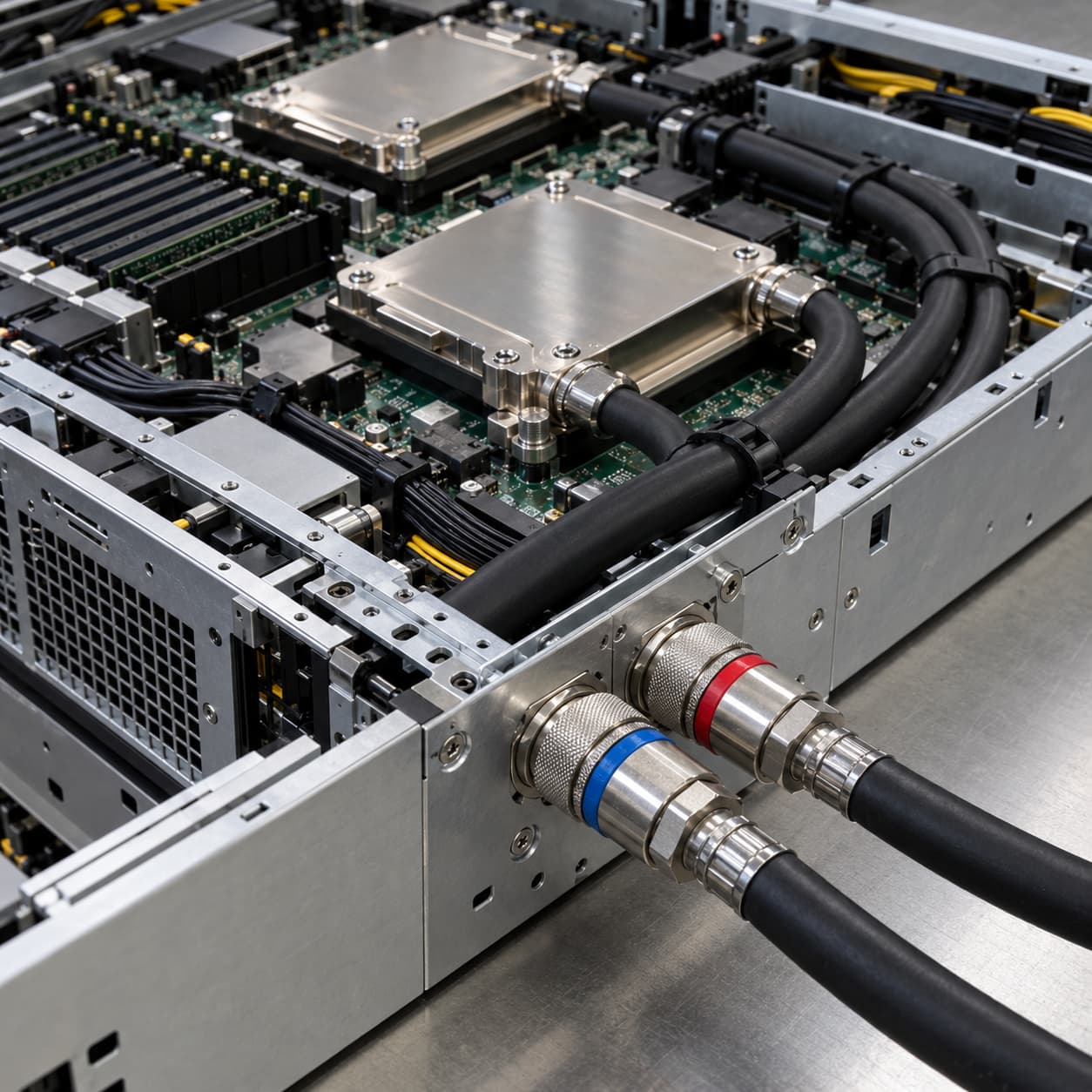

Liquid-cooled server chassis and hose interfaces illustration

Compact optical module cooling connection concept

Send Your Connector Project for Manufacturing Review

Email your 2D drawing and 3D model with material, quantity, thread details, mating requirements, surface finish and cleanliness specifications.

For an assembled connector, also include coolant, operating pressure and temperature, target flow rate, sealing requirements and the required validation plan. Tell us whether you need machined parts or assembly support.

Use the inquiry form for your project summary and contact details. Send drawing files directly by email.
