Custom Aluminum Enclosure Gallery

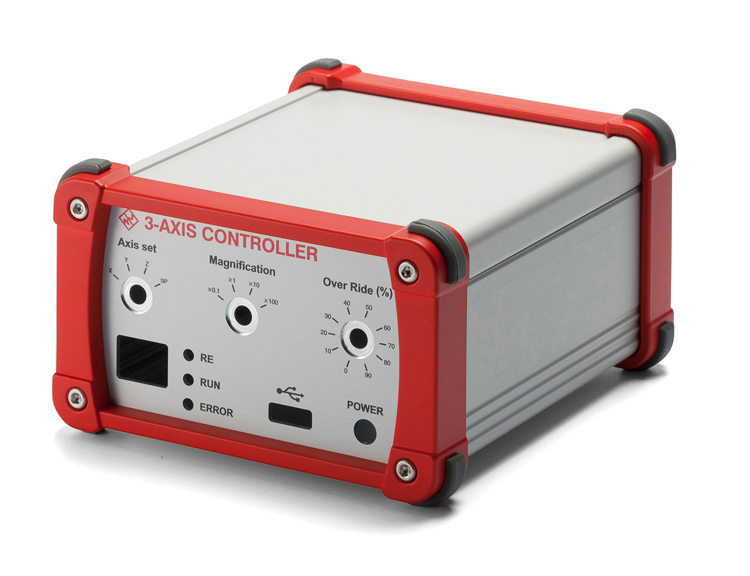

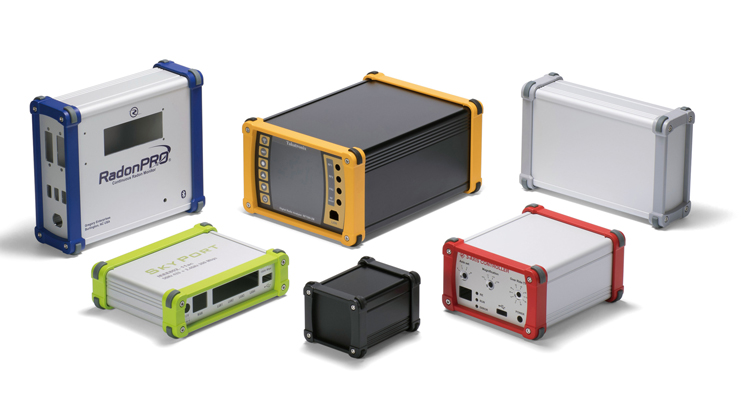

The following projects show different aluminum enclosure structures, machined openings, removable panels, end plates, and surface finishes produced for customer-specific applications.
Aluminum housings can be manufactured through extrusion, CNC machining, sheet metal fabrication, or a combination of these processes. The suitable structure depends on enclosure size, production quantity, appearance, heat-dissipation requirements, internal layout, and tooling budget.
Standard Extrusion + Machining

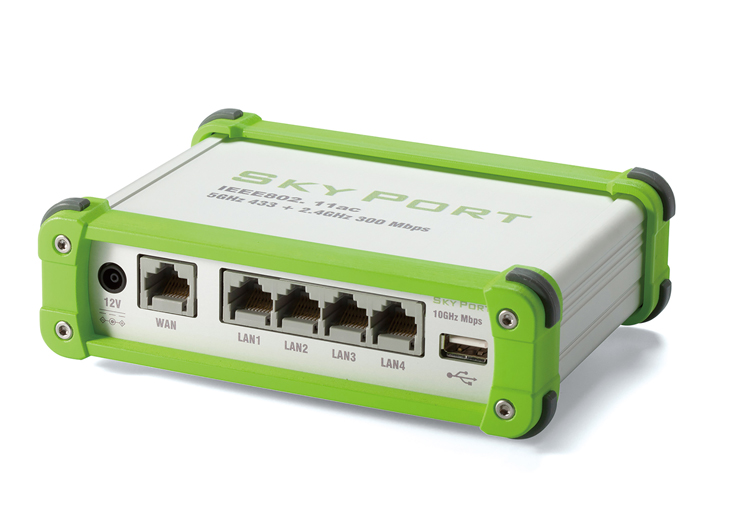

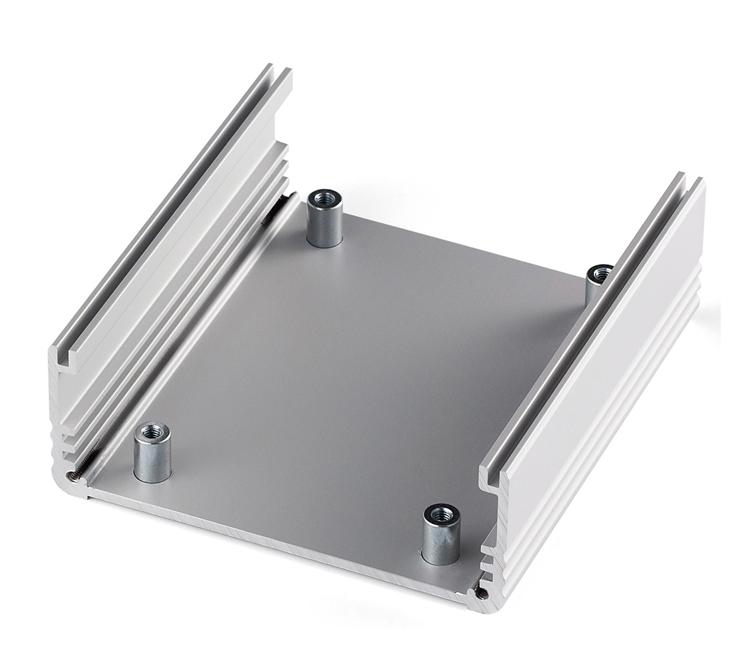

Suitable when an available profile is close to the required enclosure size. CNC machining can add ports, holes, slots, threads, and connector openings.
Custom Extrusion Profile
Appropriate for repeat production requiring a unique cross-section, integrated guide rails, heat-dissipation fins, mounting channels, or special wall structures.
Fully CNC-Machined Housing
Considered for prototypes, low-volume projects, complex internal cavities, tight component alignment, or designs that cannot use a standard extruded profile.
Aluminum Materials for Enclosures and Chassis
Aluminum 6063
Commonly considered for extruded enclosure profiles and heat-dissipation structures because of its extrusion performance and anodized appearance.
Aluminum 6061
Often selected for CNC-machined housings, structural components, mounting blocks, and enclosure parts requiring additional strength.
Aluminum 5052
Suitable for bent end plates, internal brackets, covers, and other sheet metal components used together with an extruded enclosure.
Material Selection
The final alloy and temper should be confirmed according to structure, machining, bending, finish, strength, corrosion exposure, and quantity.
From Profile to Finished Aluminum Housing
Drawing Review Confirm enclosure dimensions, internal components, critical interfaces, material, finish, and production quantity.
Profile Preparation Select an available extrusion or evaluate a custom extrusion profile according to the project requirements.

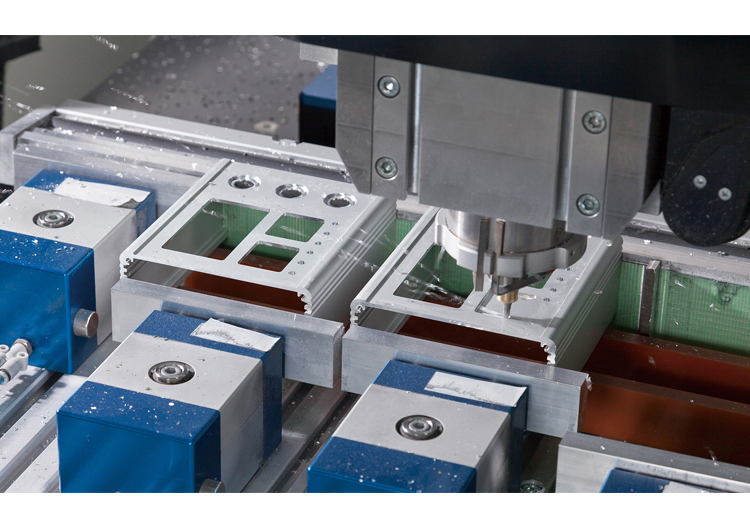

CNC Processing Cut profiles and machine holes, slots, pockets, ports, threads, and mounting features according to the drawing.
Finish & Assembly Complete the specified surface treatment, marking, hardware installation, inspection, and packaging.

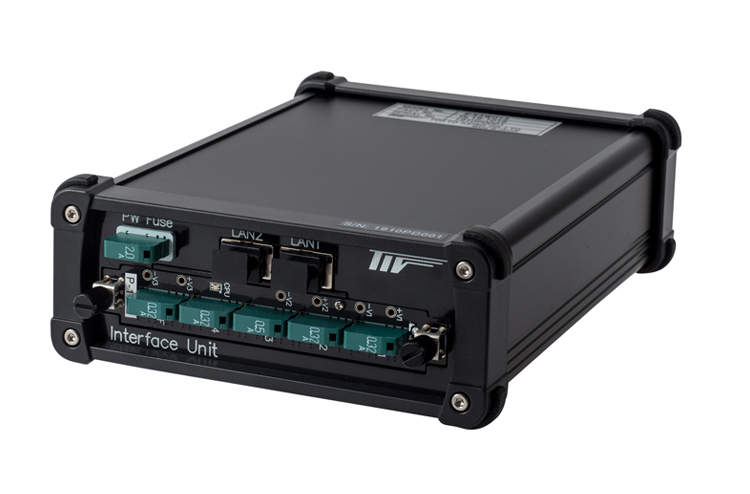

End panels: removable front and rear panels with custom cutouts, countersinks, fasteners, and printed identification.
Hardware: threaded inserts, studs, screws, feet, handles, hinges, seals, and other mechanical components.
Marking: laser engraving, silk-screen printing, labels, serial numbers, and customer logos.
DFM note: Please provide the PCB layout, connector positions, assembly clearances, critical dimensions, and cosmetic surface requirements where available. These details help us review tool access, wall thickness, fastener positions, and the most suitable manufacturing route.
Surface Finishing for Aluminum Enclosures
Anodizing
Clear, black, or other colors can be reviewed according to the selected alloy, surface preparation, appearance standard, and batch requirement.
Powder Coating
Provides color and surface protection for industrial housings. Masked areas and grounding points should be marked on the drawing.
Brushing & Blasting
Brushed or bead-blasted preparation can help create a controlled cosmetic texture before anodizing or other specified finishing.
Applications of Custom Aluminum Enclosures
Industrial control and automation equipment
Electronic instruments and measurement devices
Communication and network equipment
Power supplies, converters, and energy equipment
Embedded computers and control systems
Sensor, testing, and monitoring devices
Heat-dissipation housings for electronic components
Why Work with Hongming Sheng?
OEM metal manufacturing experience since 2010
Aluminum extrusion, CNC machining, finishing, and assembly support
Manufacturing based on customer drawings, CAD files, or samples
Prototype, low-volume, and repeat production capability
Engineering feedback for structure and process optimization
Inspection requirements reviewed according to the project drawing
NDA support for confidential designs and technical information
Information Needed for a Quotation
Drawings STEP, IGS, DWG, DXF, or PDF files.
Material Aluminum alloy and temper, if specified.
Quantity Prototype quantity and expected production volume.
Critical Dimensions PCB locations, ports, fits, threads, and assembly interfaces.
Surface Finish Anodizing color, texture, coating, marking, and cosmetic standard.
Assembly Scope Panels, fasteners, seals, inserts, accessories, and packaging.
Request a Custom Aluminum Enclosure Quote
Send your drawings, CAD files, enclosure dimensions, material, finish, and quantity requirements. Our team will review the manufacturing route and provide quotation feedback for your project.
Customer drawings, samples, specifications, tooling information, and production data are treated as confidential. NDA agreements are available for OEM cooperation.
