CATEGORIESStart with a Complete Battery Integration Layout Hongming Sheng manufactures custom sheet metal housings for lithium battery packs and energy storage modules. We adapt enclosure dimensions, internal supports, connection openings, and service access to your approved equipment layout. From residential battery modules to commercial energy storage assemblies, share your pack size, mounting format, cooling arrangement, and interface requirements for engineering review. | Send Your Project Files Drawings, pack layout, material, and quantity help us define the fabrication scope. Email: |

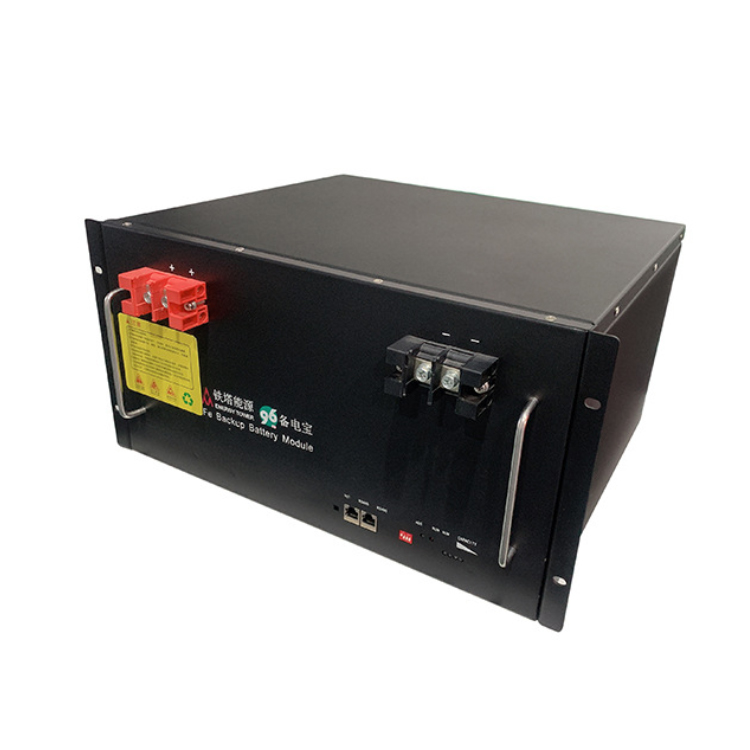

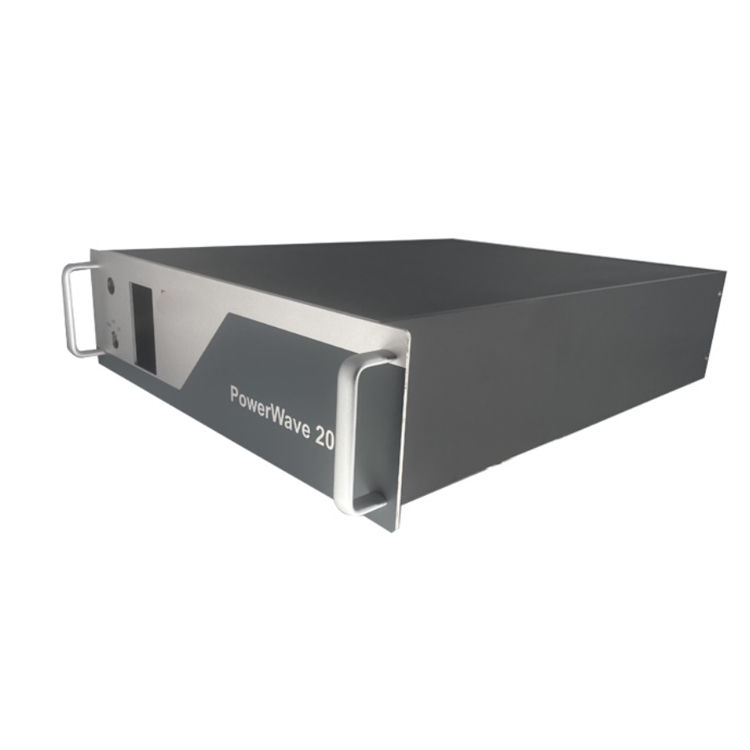

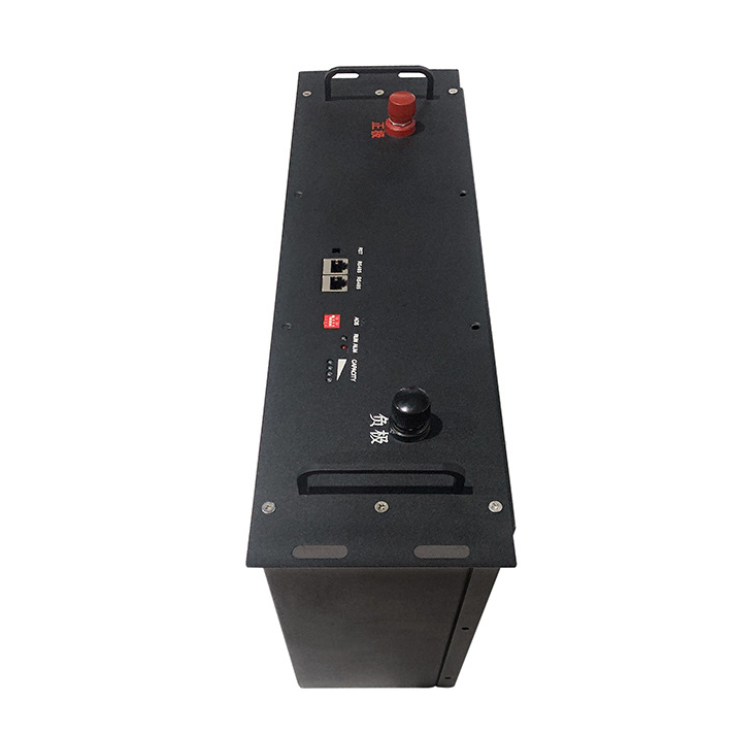

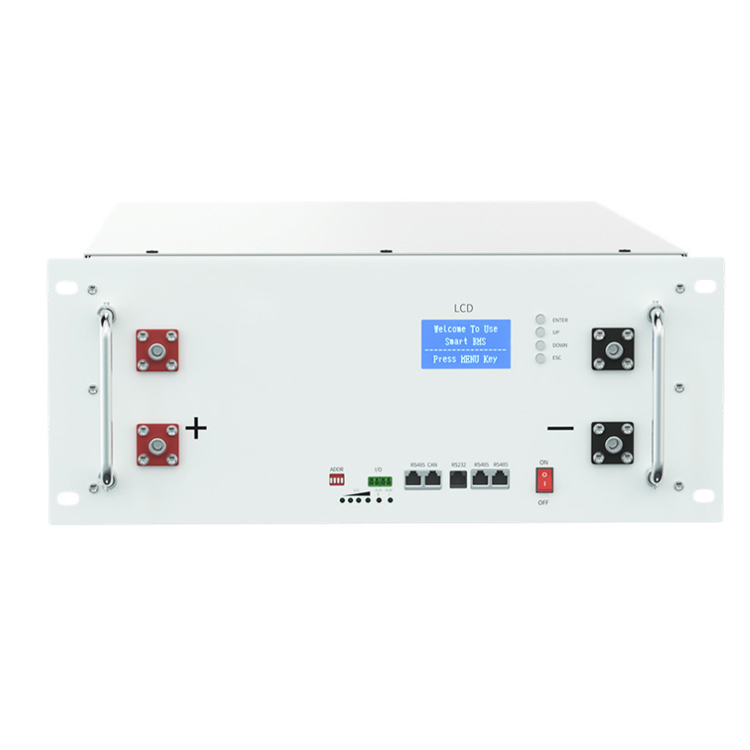

Sample structures illustrate different layouts and access features. Final dimensions, materials, and interfaces are defined by your project drawings.
| Integration Area | Customization Options | Information Needed |
|---|---|---|
| Pack Support | Internal supports, mounting points, reinforcement, and fastener arrangements. | Pack dimensions, weight, mounting layout, and specified load requirements. |
| Electrical Interfaces | Cable routing, connection openings, and mounting provisions for terminal blocks. | Interface drawings, component positions, and required clearances. |
| Cooling Layout | Ventilation openings and space allocation for the customer-defined cooling arrangement. | Cooling method, component layout, and required opening positions. |
| Service Access | Inspection doors, removable covers, compartment partitions, and labeling areas. | Maintenance access, partition layout, insulation specifications, and label details. |
Steel or aluminum: Material grade, thickness, and reinforcement details are reviewed against the enclosure geometry, pack weight, and installation requirements.
Installation environment: Specify indoor, outdoor, or coastal use together with coating and corrosion protection requirements. Define any insulation or compartment performance requirements in the project specification.
Before production: Confirm mounting positions, cable access, cover fit, and maintenance space. Engineering feedback can help refine the sheet metal layout and internal space utilization before drawings are released.
Send your enclosure drawings, battery pack layout, material, finish, quantity, and target delivery date. Include the cooling arrangement and internal component positions where available.
Email: info@hms1688.com
Customer drawings, pack layouts, and project specifications are handled confidentially. NDA support is available for OEM energy storage projects.
Contact us and just send us your drawing (SolidWorks,ProE,CAD,PDF,DXF...)
