Sheet Metal Welding Methods and Custom Fabrication Services
Sheet Metal Welding Selection
The Best Welding Method Depends on the Part, Not Only the Material
A welded sheet metal assembly should be reviewed according to material, thickness, joint type, appearance, accessibility, heat input, and distortion sensitivity.
Hongming Sheng supports custom welded sheet metal parts and assemblies based on customer drawings and fabrication requirements.

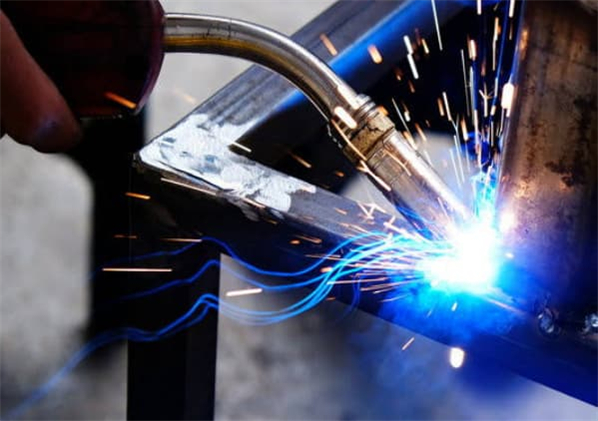

MIG WeldingSuitable for many steel and fabricated structural assemblies where welding speed and joint accessibility are important.
TIG WeldingOften selected where thinner material, visible weld appearance, stainless steel, or aluminum joints require greater heat control.
Robotic WeldingCan be considered for repeatable assemblies where part positioning, joint access, and production consistency are suitable for automation.
What Determines the Welding Method?
MaterialCarbon steel, stainless steel, and aluminum behave differently under welding heat.
Sheet ThicknessThin sheet usually requires more careful heat control to reduce burn-through or distortion.
Joint TypeLap joints, butt joints, corner joints, tube-to-plate joints, and frame joints may require different approaches.
AppearanceVisible welds may require a different process and finishing plan from hidden structural joints.
AccessibilityTorch angle and tool clearance should be considered before the assembly sequence is finalized.
RepeatabilityStable fixtures and repeated joint geometry can make automated welding more practical.
Welding Process Preview
Heat Input & Distortion Matter
Welding introduces localized heat into the part. On thin panels, long seams, large frames, or assemblies with several joints, that heat can change flatness, angle, gap, or mounting relationships.
● Welding sequence can influence final geometry
● Fixtures may be used to control part position
● Stitch or intermittent welds may be specified where appropriate
● Long continuous welds can introduce more heat
● Post-weld grinding or machining may be required on selected areas
Welding Method Examples
Not Every Weld Needs the Same Finish
Structural WeldMay prioritize joint strength and assembly geometry.
Visible WeldMay require controlled bead appearance or grinding.
Ground Flush WeldCan be used where a smooth external surface is required.
Sealed JointMay require continuous welding where specified by the enclosure design.
Post-Coating SurfaceGrinding and cleaning should be considered before powder coating or other finishing.
Assembly Sequence Should Be Planned Before Welding
Some sheet metal assemblies become difficult to access after surrounding panels or brackets are added. For this reason, welding order should be considered together with bending, hardware installation, grinding, and final assembly.
Useful Information for Welding Review
● 2D drawing and/or 3D assembly model
● Material and thickness
● Weld locations and weld symbols
● Cosmetic surface requirements
● Critical dimensions after welding
● Grinding or post-weld machining requirements
● Surface finish
● Quantity
Need a Custom Welded Sheet Metal Assembly?
Send your drawing, material, thickness, weld requirements, critical geometry, surface finish, and quantity. Our team can review the welding and fabrication sequence before quotation.
Customer drawings, CAD files, samples, and technical specifications are treated as confidential. NDA support is available for OEM projects.
